Leviton 2680
2680 Product Description

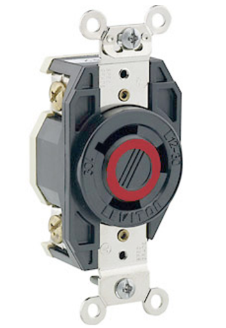

Leviton 30A, 480V 3-Phase, NEMA L12-30R, 3P, 3W, Flush Mtg Locking Receptacle, Non-Grounding, V-0-MAX, Black Finish.
Specifications:
Brand: Leviton
NEMA: WD-1 & WD-6
Device Type: Locking Receptacle
Terminal ID: Marked on Device
Ground Contacts: Brass
Environment: Corrosive
Dielectric Voltage: Withstands 2000V per UL498
Amperage: 30 A
RoHS Compliant: FALSE
Flammability: Rated V-0 per UL 94
Phase: 3-Phase
ANSI: C-73
Strap Material: Nickel-Plated Brass
Face Material: Nylon
Grounding Screw: Chromated Brass
Wire: 3
Pole: 3
NOM: 57
Base Material: Nylon
Operating Temperature: -40 °C to 60 °C
Line Contacts: Brass
Body Material: Nylon
Color: Black
Voltage: 480 VAC
Terminal Screws: Chromated Brass
Grounding: Non-Grounding
Warranty: Limited Lifetime Warranty
At Rated Voltage: 10 HP
Termination: Back & Side
Screw Terminal Torque: 14-18 in-lbs
Terminal Clamps: Nickel-Plated Brass
Current Limiting: Full Rated Current
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Product ID: Ratings and NEMA I.D. permanently marked on device
Brand: V-0-Max
Terminal Accom.: 14-8 AWG
