Leviton 2666
2666 Product Description

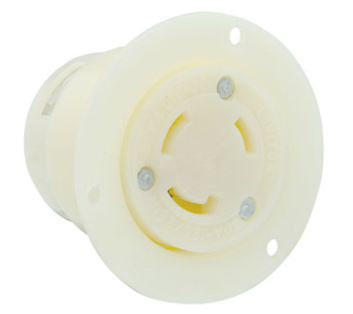

Leviton 30A, 125/250V NEMA L10-30P, 3P, 3W, Flanged Inlet Locking Receptacle, Non-Grounding, White Finish.
Specifications:
Brand: Leviton
Grounding Screw: Brass 8-32
RoHS Compliant: TRUE
Product ID: Ratings and NEMA I.D. permanently marked on device
NEMA: WD-6
Pole: 3
Current Limiting: Full Rated Current
Line Contacts: Solid Brass
Color: White
Device Type: Locking Flanged Outlet
Flammability: Rated V-2 per UL 94
Screw Terminal Torque: 10-14 in-lbs
At Rated Voltage: 2 HP L-L/2 HP L-N
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125/250 VAC
Brand: Black and White
Amperage: 30 A
Grounding: Non-Grounding
Strap Material: Thermoplastic Nylon
Terminal Screws: Brass 10-32
Operating Temperature: -40 °C to 60 °C
Wire: 3
Environment: Dry
Body Material: Nylon
Termination: Back
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Dielectric Voltage: Withstands 2000V per UL498
Terminal Accom.: 18-10 AWG
Warranty: Limited Lifetime Warranty Warranty
Face Material: Nylon
