Leviton 2656
2656 Product Description

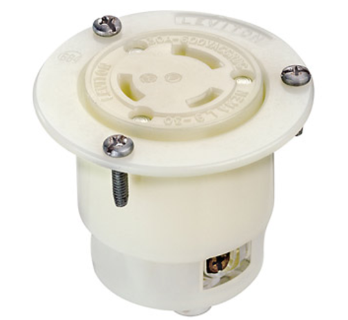

Leviton 30A, 600V NEMA L9-30R, 2P, 3W, Flanged Outlet Locking Receptacle, Grounding, White Finish.
Specifications:
Brand: Leviton
Terminal Screws: Brass 10-32
Flammability: Rated V-2 per UL 94
Terminal Accom.: 18-10 AWG
Product ID: Ratings and NEMA I.D. permanently marked on device
Voltage: 600 VAC
Current Limiting: Full Rated Current
Termination: Back
Dielectric Voltage: Withstands 2000V per UL498
Brand: Black and White
Grounding: Grounding
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Color: White
Warranty: Limited Lifetime Warranty Warranty
Device Type: Locking Flanged Outlet
RoHS Compliant: TRUE
Screw Terminal Torque: 10-14 in-lbs
Line Contacts: Brass .035 Thick
Pole: 2
Amperage: 30 A
Face Material: Nylon
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Wire: 3
Grounding Screw: Brass 8-32
Operating Temperature: -40 °C to 60 °C
NOM: 57
Environment: Dry
Strap Material: Thermoplastic Nylon
Body Material: Nylon
