Leviton 2523
2523 Product Description

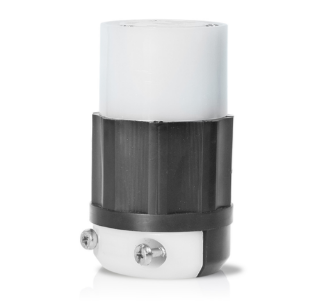

20A, 277/480V 3-Phase Y, NEMA L22-20R, 4P, 5W, Locking Connector, Grounding (Black/White)
Specifications:
SKU: 2523
Brand: Leviton
Terminal Screws: Brass
Operating Temperature: -40 °C to 60 °C
Blades/Contacts: Solid Brass
Wire Module: Nylon
At Rated Voltage: 5 HP
Product ID: Ratings are permanently marked on device
Wire: 5
Cord-Clamp: Nylon
Torque Range: 10-14 in-lbs
Voltage: 277/480 VAC
UL Fed Spec WC-596: File E13393
Warranty: Limited Lifetime Warranty
Back Cover: Thermoplastic
Clamp Insert: Nylon
Brand: Black and White
Flammability: Rated HB or better UL94
CSA C22.2 No. 42: File LR-406
Dielectric Voltage: Withstands 2000V per UL498
Phase: 3-Phase WYE
Grounding: Grounding
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Environment: Dry
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Cord Range: .595 - .895
UL498: File E13393
Current Interrupting: Certified for current interrupting at full rated current
Assembly Screws: Steel, Zinc Plated
Device Type: Locking Connector
Amperage: 20 A
NEMA: WD-6
Country of Origin: Mexico
NOM: 57
Color: Black-White
RoHS Compliant: TRUE
Terminal Accom.: 18-10 AWG
Pole: 4
ANSI: C-73
Body Material: Impact Modified Nylon
Wire Gauge: 14-10 AWG
