Leviton 2466
2466 Product Description

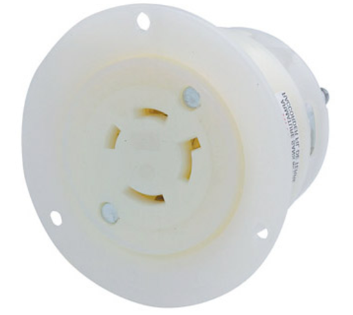

Leviton 20A, 347/600V 3PY, NEMA L20-20R, 4P, 4W, Flanged Outlet Locking Receptacle, Non-Grounding, White.
Specifications:
Brand: Leviton
Grounding Screw: Brass 8-32
Phase: 3-Phase WYE
Termination: Back
Environment: Dry
Terminal Screws: Brass 10-32
Dielectric Voltage: Withstands 2000V per UL498
Screw Terminal Torque: 10-14 in-lbs
Line Contacts: Solid Brass
Amperage: 20 A
RoHS Compliant: TRUE
NOM: 57
Terminal Accom.: 18-10 AWG
Strap Material: Thermoplastic Nylon
Color: White
Body Material: Nylon
Operating Temperature: -40 °C to 60 °C
Brand: Black and White
Wire: 4
Current Limiting: Full Rated Current
Voltage: 347/600 VAC
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Product ID: Ratings and NEMA I.D. permanently marked on device
Flammability: Rated V-2 per UL 94
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Pole: 4
Device Type: Locking Flanged Outlet
Face Material: Nylon
UL Fed Spec WC-596: File E13393
Grounding: Non-Grounding
NEMA: WD-6
