Leviton 2460
2460 Product Description

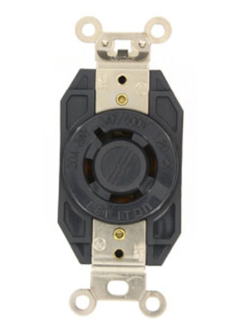

Leviton 20A, 347/600V 3PY, NEMA L20-20R, 4P, 4W, Flush Mtg Locking Receptacle, Non-Grounding, Black Finish.
Specifications:
Brand: Leviton
Current Limiting: Full Rated Current
Base Material: Nylon
Cover Material: Valox 357
Terminal Accom.: 14-8 AWG
Body Material: Nylon
Color: Black
Termination: Back & Side
Terminal Screws: Chromated Brass
Brand: V-0-Max
Terminal Clamps: Nickel-Plated Brass
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Torque Range: 14-16 in-lbs
Product ID: Ratings and NEMA I.D. permanently marked on device
Flammability: Rated V-0 per UL 94
Dielectric Voltage: Withstands 2000V per UL498
Terminal ID: Marked on Device
NEMA: WD-6
Device Type: Locking Receptacle
Grounding: Non-Grounding
Screw Terminal Torque: 14-18 in-lbs
UL Fed Spec: W-C-596
Pole: 4
Warranty: Limited Lifetime Warranty
Phase: 3-Phase WYE
Operating Temperature: -40 °C to 60 °C
Face Material: Nylon
Line Contacts: Brass
Voltage: 347/600 VAC
Grounding Screw: Chromated Brass
Strap Material: Nickel-Plated Brass
Wire: 4
UL: 498
ANSI: C-73
NOM: 57
RoHS Compliant: TRUE
Environment: Corrosive
