Leviton 2456
2456 Product Description

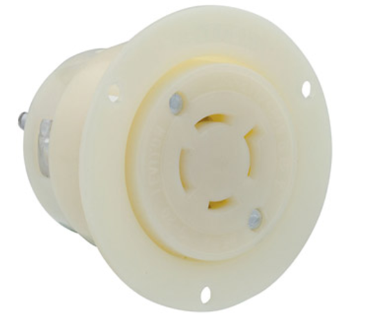

Leviton 20A, 277/480V 3-Phase Y, NEMA L19-20R, 4P, 4W, Flanged Outlet Locking Receptacle, Non-Grounding, White Finish.
Specifications:
Brand: Leviton
RoHS Compliant: TRUE
Phase: 3-Phase WYE
Termination: Back
Operating Temperature: -40 °C to 60 °C
Strap Material: Thermoplastic Nylon
Terminal Screws: Brass 10-32
Dielectric Voltage: Withstands 2000V per UL498
Body Material: Nylon
Line Contacts: Solid Brass
Terminal Accom.: 18-10 AWG
Device Type: Locking Flanged Outlet
Brand: Black and White
Screw Terminal Torque: 10-14 in-lbs
Grounding Screw: Brass 8-32
NEMA: WD-6
NOM: 57
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Flammability: Rated V-2 per UL 94
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
At Rated Voltage: 5 HP
Color: White
Current Limiting: Full Rated Current
Wire: 4
Pole: 4
Amperage: 20 A
Voltage: 277/480 VAC
Environment: Dry
Torque Range: 10-14 in-lbs
Grounding: Non-Grounding
Product ID: Ratings and NEMA I.D. permanently marked on device
Face Material: Nylon
