Leviton 2455
2455 Product Description

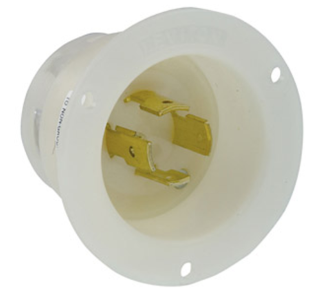

Leviton 20A, 277/480V 3-Phase Y, NEMA L19-20P, 4P, 4W, Flanged Inlet Locking Receptacle, Non-Grounding, White Finish.
Specifications:
Brand: Leviton
Warranty: Limited Lifetime Warranty
Pole: 4
Terminal Accom.: 18-10 AWG
Grounding Screw: Brass 8-32
At Rated Voltage: 5 HP
Strap Material: Thermoplastic Nylon
Flammability: Rated V-2 per UL 94
Operating Temperature: -40 °C to 60 °C
Environment: Dry
Screw Terminal Torque: 10-14 in-lbs
Termination: Back
Current Limiting: Full Rated Current
Face Material: Nylon
Grounding: Non-Grounding
Wire: 4
NEMA: WD-6
Phase: 3-Phase WYE
NOM: 57
Amperage: 20 A
Line Contacts: Solid Brass
Terminal Screws: Brass 10-32
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 277/480 VAC
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
UL498: File E13393
Dielectric Voltage: Withstands 2000V per UL498
RoHS Compliant: TRUE
Device Type: Locking Flanged Inlet
Body Material: Nylon
Product ID: Ratings and NEMA I.D. permanently marked on device
Color: White
