Leviton 2447
2447 Product Description

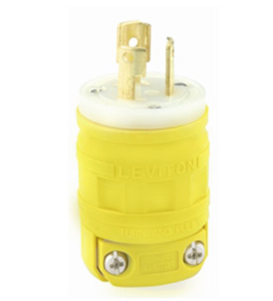

Leviton Dustguard Locking Plug, Yellow Finish.
Specifications:
Brand: Leviton
Wire: 3
Wire Module: Nylon
Cord Range: .240 - .655
Terminal Accom.: 12-18 AWG
Body Material: Santoprene TPV
Operating Temperature: -40 °C to 60 °C
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Brand: Dustguard
Product ID: Ratings and NEMA I.D. permanently marked on device
Current Limiting: Full Rated Current
NEMA: WD-6
Voltage: 125 VAC
Amperage: 15 A
Assembly Screws: Steel, Zinc Plated
Device Type: Locking Plug
NOM: 57
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Environment: Dry
Dielectric Voltage: Withstands 2000V per UL498
Pole: 2
Flammability: Rated V-2 per UL 94
Grounding: Grounding
Warranty: 2-Year Limited
Cord-Clamp: Nylon
Terminal Screws: Brass
RoHS Compliant: TRUE
Blades/Contacts: Solid Brass
Color: Yellow
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
