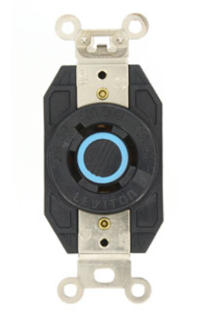

Leviton 2440 20A, 120/208V 3-Phase Y, NEMA L18-20R, 4P, 4W, Flush Mtg Locking Receptacle, Non-Grounding, V-0-MAX, Black Finish

Leviton 2440

2440 Product Description

Specifications:

Brand: Leviton
Brand: Leviton
NOM: 57
Phase: 3-Phase WYE
Grounding Screw: Chromated Brass
Terminal Clamps: Nickel-Plated Brass
Product ID: Ratings and NEMA I.D. permanently marked on device
Grounding: Non-Grounding
Wire: 4
UL: 498
Terminal Accom.: 14-8 AWG
Amperage: 20 A
Strap Material: Nickel-Plated Brass
Face Material: Ultramid
Terminal Screws: Chromated Brass
Base Material: Valox
Ground Contacts: Brass
Dielectric Voltage: Withstands 2000V per UL498
Warranty: Limited Lifetime Warranty
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
NEMA: WD-1 & WD-6
Terminal ID: Marked on Device
RoHS Compliant: FALSE
Flammability: Rated V-0 per UL 94
Current Limiting: Full Rated Current
Termination: Back & Side
Screw Terminal Torque: 14-18 in-lbs
Device Type: Locking Receptacle
Body Material: Nylon
Voltage: 120/208 VAC
UL Fed Spec: W-C-596
Cover Material: Valox 357
Pole: 4
Color: Black
Operating Temperature: -40 °C to 60 °C
Brand: V-0-Max
Environment: Corrosive
Line Contacts: Brass
