Leviton 2415
2415 Product Description

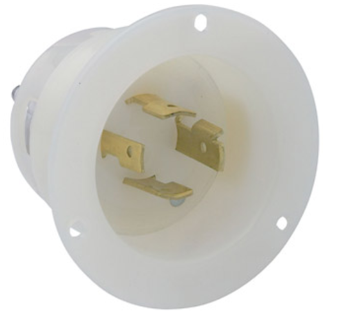

Leviton 20A, 125/250V NEMA L14-20P, 3P, 4W, Flanged Inlet Locking Receptacle, Grounding, White Finish.
Specifications:
Brand: Leviton
Face Material: Nylon
UL Fed Spec WC-596: File E13393
Strap Material: Thermoplastic Nylon
Amperage: 20 A
Line Contacts: Solid Brass
Wire: 4
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125/250 VAC
Current Limiting: Full Rated Current
NOM: 57
Brand: Black and White
NEMA: WD-6
Dielectric Voltage: Withstands 2000V per UL498
Terminal Screws: Brass 10-32
Product ID: Ratings and NEMA I.D. permanently marked on device
RoHS Compliant: TRUE
Grounding: Grounding
Screw Terminal Torque: 10-14 in-lbs
ANSI: C-73
Flammability: Rated V-2 per UL 94
UL498: File E13393
Grounding Screw: Brass 8-32
Termination: Back
Environment: Dry
CSA C22.2 No. 42: File LR-406
Operating Temperature: -40 °C to 60 °C
Pole: 3
At Rated Voltage: 2 HP L-L/1 HP L-N
Color: White
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Body Material: Nylon
Warranty: Limited Lifetime Warranty
Device Type: Locking Flanged Inlet
Terminal Accom.: 18-10 AWG
