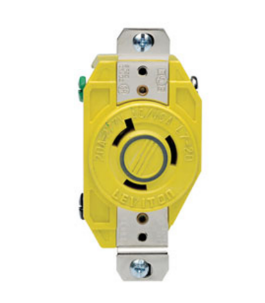

Leviton 23CM-30 20A, 277V NEMA L7-20r, 2p, 3w, Flush Mtg Locking Receptacle, Grounding, Corrosion-resistant (Yellow)

Leviton 23CM-30

23CM-30 Product Description

20A, 277V NEMA L7-20r, 2p, 3w, Flush Mtg Locking Receptacle, Grounding, Corrosion-resistant (Yellow)

Specifications:

SKU: 23CM-30
Brand: Leviton
UL: 498
Ground Contacts: Nickel-Plated Brass
Country of Origin: Mexico
Current Limiting: Full Rated Current
Terminal Accom.: 14-8 AWG
Terminal Screws: Nickel-Plated Brass
Environment: Corrosive
Terminal ID: Marked on Device
Product ID: Ratings and NEMA I.D. permanently marked on device
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
ANSI: C-73
NOM: 57
Screw Terminal Torque: 10-14 in-lbs
RoHS Compliant: FALSE
Terminal Clamps: Nickel-Plated Brass
Grounding: Grounding
Strap Material: Nickel-Plated Brass
Dielectric Voltage: Withstands 2000V per UL498
Amperage: 20 A
Cover Material: Valox 357
Grounding Screw: Chromated Brass
Brand: V-0-Max
Termination: Back
CSA: C22.2 No. 42
At Rated Voltage: 2 HP
Operating Temperature: -40 °C to 60 °C
Face Material: Nylon
UL Fed Spec: W-C-596
Pole: 2
Warranty: Limited Lifetime Warranty
Base Material: Nylon
Wire: 3
Color: Yellow
Line Contacts: Nickel-Plated Brass .040 Thick
Voltage: 277 VAC
NEMA: WD-1 & WD-6
Flammability: Rated V-0 per UL 94
Body Material: Valox 357
