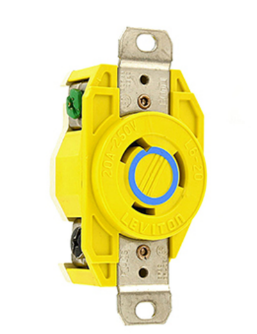

Leviton 23CM-20 20A, 250V NEMA L6-20r, 2p, 3w, Flush Mtg Locking Receptacle, Grounding, Corrosion-resistant (Yellow)

Leviton 23CM-20

23CM-20 Product Description

20A, 250V NEMA L6-20r, 2p, 3w, Flush Mtg Locking Receptacle, Grounding, Corrosion-resistant (Yellow)

Specifications:

SKU: 23CM-20
Brand: Leviton
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
UL Fed Spec: W-C-596
Terminal Clamps: Nickel-Plated Brass
Pole: 2
Color: Yellow
Face Material: Nylon
Country of Origin: Mexico
Warranty: Limited Lifetime Warranty
Base Material: Nylon
Terminal ID: Marked on Device
Amperage: 20 A
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Grounding
NEMA: WD-1 & WD-6
At Rated Voltage: 2 HP
Terminal Accom.: 14-8 AWG
RoHS Compliant: TRUE
Environment: Corrosive
Operating Temperature: -40 °C to 60 °C
NOM: 57
Flammability: Rated V-0 per UL 94
Brand: V-0-Max
UL: 498
Line Contacts: Nickel-Plated Brass
CSA: C22.2 No. 42
Ground Contacts: Nickel-Plated Brass
Terminal Screws: Nickel-Plated Brass
Wire: 3
ANSI: C-73
Voltage: 250 VAC
Termination: Back
Body Material: Valox 357
Grounding Screw: Chromated Brass
Cover Material: Valox 357
Strap Material: Nickel-Plated Brass
Screw Terminal Torque: 10-14 in-lbs
Current Limiting: Full Rated Current
Product ID: Ratings and NEMA I.D. permanently marked on device
