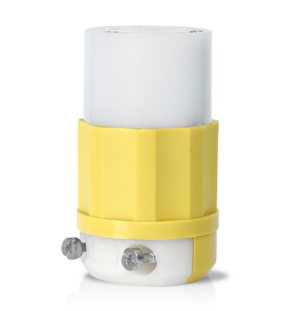

Leviton 23CM-13
23CM-13 Product Description
Locking Connector, 20A, 125V Corrosion-resistant (Yellow & White)
Specifications:
SKU: 23CM-13
Brand: Leviton
Color: Yellow-White
Cord Range: .218 - .430
NOM: 57
Cord-Clamp: Nylon
Body Material: Super Tough ST801 Nylon
Dielectric Voltage: Withstands 2000V per UL498
Terminal Screws: Nickel-Plated Brass 8-32
Blades/Contacts: Nickel-Plated Brass
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
Back Cover: Thermoplastic
Screw Terminal Torque: 10-14 in-lbs
ANSI: C-73
Grounding: Grounding
Product ID: Ratings and NEMA I.D. permanently marked on device
NEMA: WD-6
Country of Origin: Mexico
Current Interrupting: Certified for current interrupting at full rated current
Assembly Screws: Stainless Steel 300
CSA C22.2 No. 42: File LR-406
Brand: Black and White
Amperage: 20 A
UL Fed Spec WC-596: File E13393
Warranty: Limited Lifetime Warranty
Wire: 3
Voltage: 125 VAC
RoHS Compliant: TRUE
Flammability: Rated V-2 per UL 94
Face Material: Nylon
Terminal Accom.: 18-10 AWG
Operating Temperature: -40 °C to 60 °C
Environment: Corrosive
Pole: 2
UL: 498
Clamp Insert: Nylon
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
