Leviton 23CM-10
23CM-10 Product Description

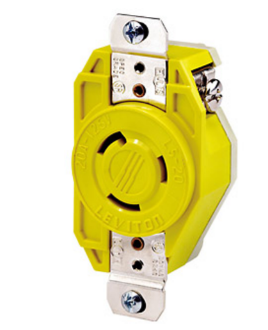

20A, 125V NEMA L5-20r, 2p, 3w, Flush Mtg Locking Receptacle, Grounding, Corrosion-resistant (Yellow)
Specifications:
SKU: 23CM-10
Brand: Leviton
Body Material: Valox 357
UL: 498
Termination: Back
ANSI: C-73
Base Material: Nylon
Warranty: Limited Lifetime Warranty
Face Material: Nylon
Terminal ID: Marked on Device
Current Limiting: Full Rated Current
Brand: V-0-Max
Cover Material: Valox 357
Wire: 3
Country of Origin: Mexico
Grounding: Grounding
Terminal Screws: Nickel-Plated Brass
Strap Material: Nickel-Plated Brass
Line Contacts: Nickel-Plated Brass
NEMA: WD-1 & WD-6
Voltage: 125 VAC
Screw Terminal Torque: 14-18 in-lbs
Ground Contacts: Nickel-Plated Brass
At Rated Voltage: 1 HP
Color: Yellow
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
UL Fed Spec: W-C-596
Terminal Accom.: 14-8 AWG
NOM: 57
Grounding Screw: Chromated Brass
Flammability: Rated V-0 per UL 94
CSA: C22.2 No. 42
Terminal Clamps: Nickel-Plated Brass
Environment: Corrosive
RoHS Compliant: TRUE
Pole: 2
Amperage: 20 A
Dielectric Voltage: Withstands 2000V per UL498
Product ID: Ratings and NEMA I.D. permanently marked on device
Operating Temperature: -40 °C to 60 °C
