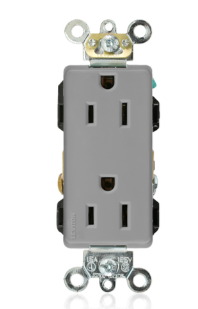

Leviton 16262-GY 15A Decora Plus Duplex Receptacle/outlet, Self-grounding, Gray Finish

Leviton 16262-GY

16262-GY Product Description

Specifications:

Brand Name: Leviton
Clamp Nuts: Zinc-Plated Steel
Grade: Heavy-Duty Industrial Specification Grade
Face Material: Thermoplastic Nylon
Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
Body Material: Thermoplastic Nylon
Terminal Accom.: 14-10 AWG
Color: Gray
Termination: Back or Side Wire
Voltage: 125 VAC
Grounding: Self-Grounding
Brand: Decora Plus
Current Limiting: Full Rated Current
Strap Material: Zinc-Plated Steel
Pole: 2
RoHS Compliant: FALSE
Dielectric Voltage: Withstands 2000V per UL498
Feature 4: Smooth Face
Flammability: Rated V-2 per UL 94
NEMA: WD-6
CSA C22.2 No. 42: File 152105
UL498: File E13399
Grounding Screw: Brass 8-32
Wire: 3
Amperage: 15 A
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts: Brass Triple-Wipe 0.040Thick
Operating Temperature: -40 °C to 60 °C
Terminal Screws: Brass 10-32
Warranty: 10-Year Limited
NOM: 57
ANSI: C-73
Ground Clips: Brass-Plated
Device Type: Duplex Receptacle Outlet
