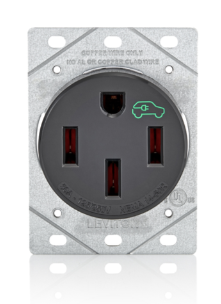

Leviton 1450R
1450R Product Description
Specifications:
Brand Name: Leviton
Grounding: Grounding
NEMA: 14-50R
Grade: Industrial
Application: Home
Torque Range: 75 in-lbs.
Face Material: Nylon
Amperage: 50 A
Terminal ID: X (Brass screw or Black screw) = Hot, Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
Product ID: Ratings are permanently marked on device
At Rated Voltage: 3 HP
Warranty: 2-Year Limited
Voltage: 125/250 VAC
RoHS Compliant: FALSE
Strap Material: Heavy Gauge Galvanized Steel
Wire: 4
Wire Gauge: For use with #4, #6 or #8 AWG copper wire ONLY. May use #10 AWG solid wire for ground connection. DO NOT use with copper-clad or aluminum wires on this device.
Device Type: Receptacle/Outlet
Operating Temperature: -40 °C to 60 °C
Pole: 3
Flammability: Rated HB or better UL94
Device: Flush Mounted Single Receptacle
About Leviton:
Leviton Manufacturing Company, Inc., is the largest privately held manufacturer of electrical wiring equipment in North America. We are committed to delivering the highest quality and most reliable, safe and sustainable solutions to our customers around the world. Inventing and manufacturing products that connect people to the power that moves them forward, the light that guides their way and the data that drives their lives. From single-family homes to the biggest commercial buildings and industrial facilities in the world, we create smart, safe, sustainable environments that save energy, time and money.
