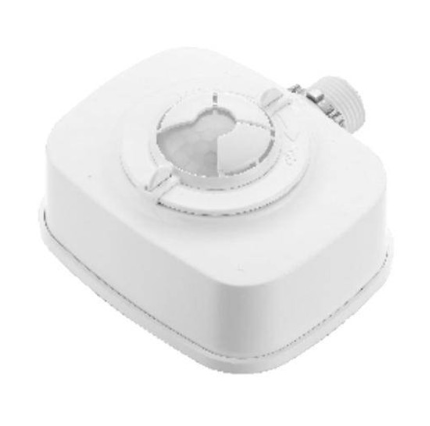

Keystone KTSL-HBFC1-UV-KO-PIR

KTSL-HBFC1-UV-KO-PIR Product Description

Keystone Bluetooth mesh Wireless Fixture Controller for SmartLoop System with integrated daylight and PIR motion sensor. 3A Max Load with 0-10V Dimming.

Specifications:

Brand:    Keystone
SKU: KTSL-HBFC1-UV-KO-PIR
Input Power 120 –277VAC, 50-60Hz
Standby Power <1W
Max Load Current 10.0A @120V, 4.3A @ 277V
RF Transmit Power 8dBm
Sensor Wires Class 2
Max Motor Load 1/6hp
Turn-on Delay Time < 0.5s
Relay Turn-off Time 2s
Max 0 –10V Sinking Current 50mA
Wireless Frequency 2.4GHz
Wireless Range (Open Air) 100ft
Wireless Protocol Bluetooth v4.2
Sensor Detection Height 40’ max
Sensor Detection Angle 120º
Daylight Harvesting Range 30-2500 lux
