Keystone KTSL-FC1-UV-KO-PIR

KTSL-FC1-UV-KO-PIR Product Description

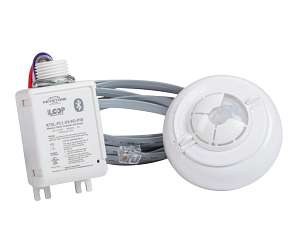

Bluetooth mesh wireless fixture controller for SmartLoop system, with remote mountable daylight and PIR motion sensor.

Features:

• Use of a relay, 0–10V dimming, and a 1/2” knock-out enable
compatibility with many standard industry fixtures
• Commissioned via SmartLoop mobile app for iPhone and Android
• Class 2 daylight and PIR motion sensor is remote mountable
via 1” trade size knockout
• Controlled via SmartLoop mobile app, keypad, and sensors
• Features of Smart loop Mobile app- High End Trim, Vacancy,
Occupancy, Daylight Harvesting, Scheduling, and Grouping
• Fixture controller and sensor connect via a convenient RJ-12 cable
• Utilizes Bluetooth mesh technology for reliable and secure
wireless communication
• Intelligent relay control software reduces wear to extend
relay life
• Power outage recovery defaults to automatic on state
• Indicator LED communicates device status
• UL2043 certified for plenum installations
• Lens cover accessory with breakaway tabs included for
specialized reception pattern needs

Specifications:

Input Power 120 –277VAC, 50-60Hz
Standby Power <1W
Max Load Current 3.0A
RF Transmit Power 8dBm
Sensor Wires Class 2
Turn-on Delay Time < 0.5s
Relay Turn-off Time 2s
Max 0 –10V Sinking Current 10mA
Wireless Frequency 2.4GHz
Wireless Range (Open Air) 100ft
Wireless Protocol Bluetooth v5.0
Sensor Detection Height 40’ max
Sensor Detection Angle 120º
Daylight Harvesting Range 100-1000 lux
