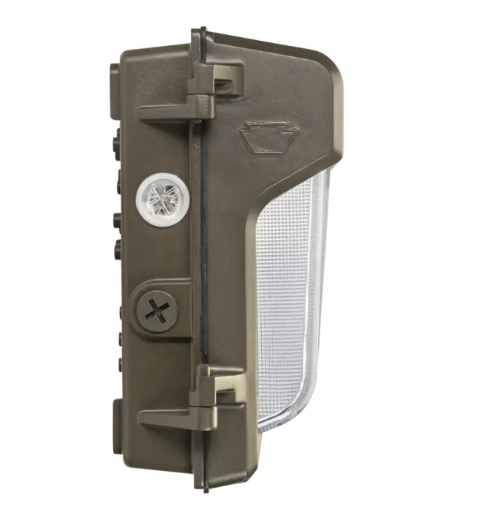

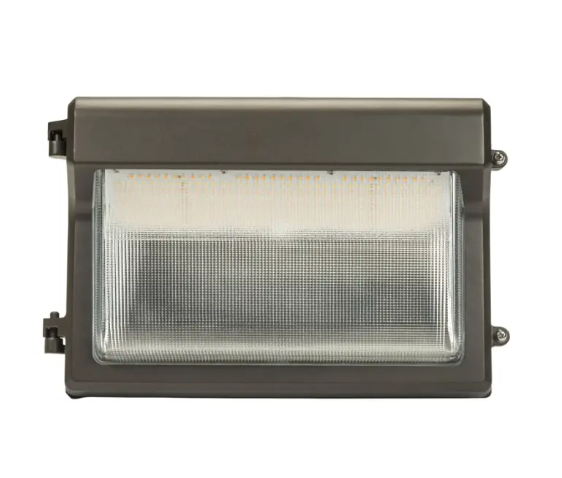

Keystone KT-WPLED55PS-M4-8CSB-VDIM

KT-WPLED55PS-M4-8CSB-VDIM Product Description

Keystone's XFit Traditional-Slim LED Wall Pack features robust lighting output capabilities – up to 17,000-plus lumens – in an updated, modern design. It provides the same light ouput as Traditional Wall Packs, but our slim model is 50% smaller. That doubles the amount of product you can fit in the same space, using less space and resulting in smaller job site deliveries.

With Keystone Power and Color Select technology for field-adjustable outputs, and a pre-installed photocell for daylight sensing, the Slim Wall Pack offers customizable features to go with its powerful, uniform light distribution. It’s the perfect fit for upgrading legacy wall packs.

Features:

Selectable color temperature (3000K/4000K/5000K)
Power Select technology (55/45/35W)
Built-in dusk-to-dawn photocell
IP65 rating
0-10V dimming, 10% minimum
5 KO access points
LED chip lifetime: L70 >100,000 hours at 25ºC/77ºF ambient fixture temp
Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
Ambient operating temperature: -20ºC/-4ºF to 45ºC/113ºF

Specifications:

Brand:    Keystone
Manufacturer Part Number:    KT-WPLED55PS-M4-8CSB-VDIM
UPC:    843654155531
Lumens:    7,600 Lumens
Wattage:    55 Watts
Input Voltage:    120-277V
Dimmable:    0-10V
Color Temperature:    3000K, 4000K, 5000K
Color:    Bronze
Rated Hours:    100,000 Hours
Equivalent:    250W HID
Min Operating Temp:    -40 Degrees F
CRI:    80+
Special Features:    CCT Selectable, Photocell Installed, Wattage Selectable, Wet Location Rated
Length:    4.72"
Width:    14.37"
Height:    9.29"
