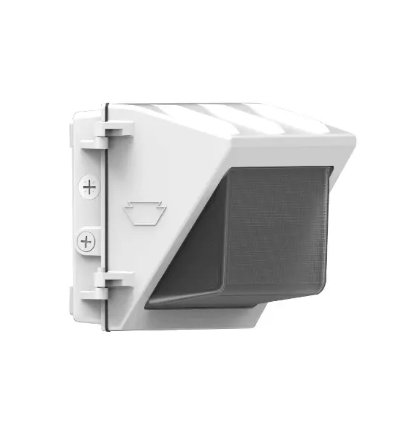

Keystone KT-WPLED35-M1-8CSB-VDIM-W

KT-WPLED35-M1-8CSB-VDIM-W Product Description

This Keystone XFit Traditional LED Wall Pack is excellent choice to provide your exterior facade lighting application with long lasting, energy efficient LED illumination. It's traditional design that matches appearance and light distribution pattern of legacy HID fixtures makes it optimized for one-for-one replacements. Being CCT-tunable, these fixtures allow the user to select between different white light color temperatures to find the right light output to suit your application. Being DLC rated, this fixture allows for even more savings when taking advantage of local energy utility rebates.

The KT-WPLED35-M1-8CSB-VDIM is a 35 watt full cutoff LED wall pack that provides 5,460 lumens of CCT-selectable white light and the following features:

Features:

 CCT Selectable, Photocell Installed
White Finish
120-277V Operation
0-10V Dimmable
Wattage: 35W
Lumens: 5,460
Equivalent: 150W HID
CCT Selectable: 3000K, 3500K, 4000K, 5000K
CRI: 80+
Rated Hours: 50,000
Built-in dusk-to-dawn photocell behind translucent 3/4" threaded plug
10 Year Limited Warranty
Covers footprint of mid-size HID wallpacks
Certifications: cULus, DLC Premium

Specifications:

Brand:    Keystone
Manufacturer Part Number:    KT-WPLED35-M1-8CSB-VDIM-W
UPC:    843654133676
Lumens:    5,460 Lumens
Wattage:    35 Watts
Input Voltage:    120-277V
Dimmable:    0-10V
Color Temperature:    3000K, 3500K, 4000K, 5000K
Color:    White
Rated Hours:    50,000 Hours
Equivalent:    150W HID
Min Operating Temp:    -40 Degrees F
CRI:    80+
Special Features:    CCT Selectable, Photocell Installed
Width:    14.37"
Height:    9.29"
