Keystone KT-RKIT45PS-24DB-8CSA-VDIM

KT-RKIT45PS-24DB-8CSA-VDIM Product Description

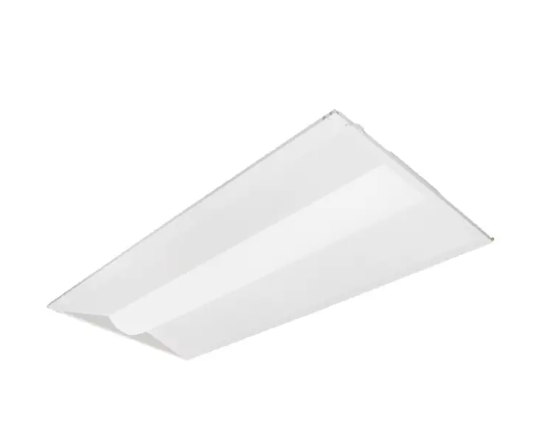

This Keystone high-output doorframe retrofit kit delivers superior illumination for commercial offices, retail spaces, and institutional facilities. With field-adjustable wattage and color temperature settings, it provides maximum lighting flexibility in a 2x4 format. The advanced construction ensures consistent light distribution while enabling efficient retrofit installation that maintains existing ceiling infrastructure.

Features:

2x4 LED doorframe retrofit kit for upgrading existing fluorescent recessed troffers without modifying fixture mounting
Field-adjustable wattage: choose between 30W/38W/45W to customize light output for specific applications
Field-adjustable CCT: adjust between 3500K/4000K/5000K to create the ideal environment for different tasks
Maximum output of up to 5,850 lumens with 80+ CRI and efficacy up to 139 lm/W
Standard T-grid compatibility with streamlined doorframe installation using included mounting hardware
Superior optical technology provides excellent light distribution and visual comfort for demanding commercial environments
120-277V operation and 12V auxiliary output for enhanced control
Damp location rated with operating temperature range of -4°F to 122°F
Compatible with Keystone SmartSafe emergency backup systems and optional PIR motion sensors
50,000 hour rated life

Specifications:

Brand:    Keystone
Manufacturer Part Number:    KT-RKIT45PS-24DB-8CSA-VDIM
UPC:    843654134840
Lumens:    5,850 Lumens
Wattage:    45 Watts
Input Voltage:    120-277V
Dimmable:    0-10V
Color Temperature:    3500K, 4000K, 5000K
Rated Hours:    50,000 Hours
Min Operating Temp:    -4 Degrees F
CRI:    80+
Special Features:    CCT Selectable, Wattage Selectable
Length:    47.8"
Width:    23.85"
