Keystone KT-FLED290PSHV-R4-OSF-UNV-8CSB-VDIM

KT-FLED290PSHV-R4-OSF-UNV-8CSB-VDIM Product Description

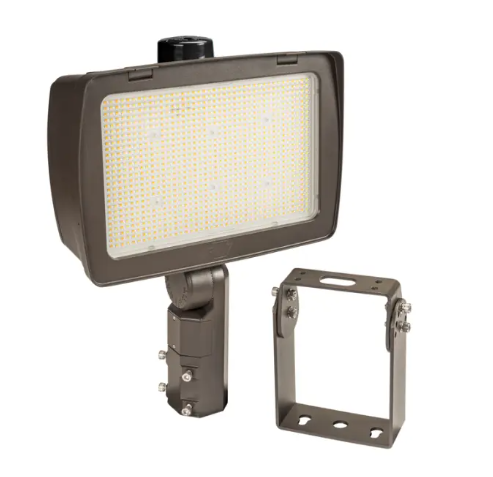

This Keystone XFit OpticSwap High Power LED Flood Light is an excellent choice to provide your exterior facade or large area lighting application with long lasting and efficient LED illumination. No need to know in advance what specific optic the light will need. With OpticSwap, you can switch the optics on the fly, thanks to an inventive design that simply requires undoing a pair of clasps. One fixture can handle many spaces, and you can install or change out the appropriate lens in seconds. Everything you need is in the box, including fixture with Power and Color Select, 3 optic lenses, 3-pin twist-lock photocell with integrated NEMA/ANSI C136.10 3-pin twist-lock receptacle and shorting cap, and both heavy-duty slipfitter and trunnion mounts. This fixture is both wattage selectable and CCT-tunable, allowing the user to select between different wattage/lumen output levels and different white light color temperatures to find just the right light output to suit their application or preference. Being DLC rated, this fixture allows for even more savings when taking advantage of local energy utility rebates.

Features:

CCT Selectable, Wattage Selectable, Photocell Installed
Bronze Finish
277-480V Operation
0-10V Dimmable
Wattage Selectable: Choose between 290 | 210W
Lumens: Up to 43,500
Equivalent: 1000W HID
CCT Selectable: 3000K, 4000K, 5000K
CRI: 80+
Beam Angle: Adjustable Optics
Innovative optic swap capability for quick, tool-free lens change
Three lenses in the box: NEMA 7H × 6V installed, 6H × 6V & 5H × 5V included
Heavy-duty interchangeable slipfitter and trunnion mount options included
Rated Hours: 50,000
10 year Limited Warranty
Certifications: DLC Premium, FCC, ROHS, UL, Wet Location Rated

Specifications:

Brand:    Keystone
Manufacturer Part Number:    KT-FLED290PSHV-R4-OSF-UNV-8CSB-VDIM
UPC:    843654160139
Lumens:    43,500 Lumens
Wattage:    290 Watts
Input Voltage:    277-480V
Dimmable:    0-10V
Color Temperature:    3000K, 4000K, 5000K
Color:    Bronze    R
ated Hours:    50,000 Hours
Beam Angle:    Adjustable Optics
Equivalent:    1000W HID
Min Operating Temp:    -40 Degrees F
CRI:    80+
Length:    15.34"
Width:    5.58"
Height:    18.34"

About Keystone:

At Keystone Technologies, we believe lighting should be simple, hassle-free, and enjoyable. That's why we offer a full range of high-quality lighting solutions, including LED lamps, fixtures, and controls, designed for performance, reliability, and ease of use. With a focus on innovation and customer satisfaction, Keystone is committed to delivering products that make lighting smarter, more efficient, and better for every environment—from commercial spaces to residential settings. Our mission is to "Light Made Easy," and we bring that philosophy to everything we do.
