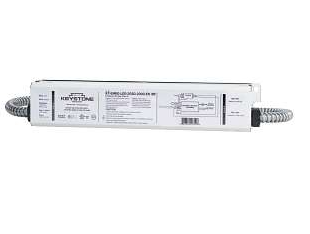

Keystone KT-EMRG-LED-20SD-2000-EN /DF-IP

KT-EMRG-LED-20SD-2000-EN /DF-IP Product Description

LED Emergency Back-Up, One Piece 20W Constant Wattage Design with Self Diagnositics. Approx 2000 lumens, Dual Flex Cables, 120-277V Input. CEC T20 Compliant. Includes Instructions, Test Switch, Switch Plate Cover, and Wiring Accessories

Electrical Specifications:

Input voltage range 120~277Vac ± 10%
Frequency 50/60Hz
Power factor > 0.9 under 120~277Vac input
Inrush current 20A @ 120V
Max input current 60mA @120V, 35mA @240V, and 30mA @277V
THD < 20% under 120~277Vac input
Output voltage 20 –60Vdc Class 2 compliant
Remarks: the output power is valid for output voltage ≤ 58Vdc; above that power will drop
Output current 1000mA @ 20Vdc, 333mA @ 60Vdc
Output power 20W (constant)
Turn-on Delay Time < 1s
Overshoot < 10%
Ripple & Noise (pk–pk) < 10%
Withstand voltage Input to output, 2800Vdc, 2mA
Leakage current Maximum 0.5mA at 277Vac, 60Hz input
Protection
Over voltage protection: Hiccup mode. Protection will trigger when load voltage exceeds specified output voltage and will auto recover after the
fault mode is removed.
Over current protection: Hiccup mode. Protection will trigger when load current exceeds specified output current and will auto recover after
the fault mode is removed.
Short circuit protection: Hiccup mode. Protection will trigger when short circuit and will auto recover after the fault mode is removed.
Over charge and discharge protection: Monitor battery voltage to prevent over charge of the battery and deep discharge which may
damage battery.
Emergency Operation 90 minutes
Battery High-temperature, maintenance-free, LiFePO4 battery, 16Vdc, 5 cell
Recharge Time 24 hours
Battery Charging Current 295mA
