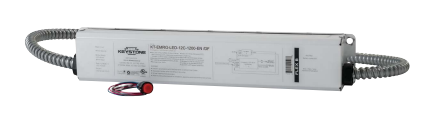

Keystone KT-EMRG-LED-12C-1200-EN-IP 1-Piece LED Emergency Back-up with Standard Wire Leads

Keystone KT-EMRG-LED-12C-1200-EN-IP

KT-EMRG-LED-12C-1200-EN-IP Product Description

LED Emergency Back-Up, One Piece 12W Constant Wattage Design, Approx 1200 Lumens, 90 Min Operation, 120-277V Input. CEC T20 Compliant. Includes Instruction Sheets, Test Switch, Switch Plate Cover, and Wiring Accessories

Specifications:

Brand: Keystone
SKU: KT-EMRG-LED-12C-1200-EN-IP
DRIVER TYPE: Constant Wattage LED Emergency
MAX. OUTPUT POWER: 12W
INPUT VOLTAGE: 120 –277Vac ±10%
OUTPUT VOLTAGE: 20-54Vdc
OUTPUT CURRENT: 250-600mA
SAFETY STANDARD: UL 924, Complies with CEC
Title 20 Efficiency Standards
Input voltage range 120~277Vac ± 10%
Frequency 50/60Hz
Power factor > 0.9 under 120~277Vac input
Inrush current 20A @ 120V
Max input current 50mA @120V, 35mA @240V, and 30mA @277V
THD < 20% under 120~277Vac input
Output voltage 20 –60Vdc Class 2 compliant
Output current 600mA @ 20Vdc, 206mA @ 58Vdc
Output power 12W (constant)
Turn-on Delay Time < 1s
Overshoot < 10%
Ripple & Noise (pk–pk) < 10%
Withstand voltage Input to output, 2800Vdc, 2mA
Leakage current Maximum 0.5mA at 277Vac, 60Hz input
Protection
Over voltage protection: Hiccup mode. Protection will trigger when load voltage exceeds specified output voltage and will auto recover after
the fault mode is removed.
Over current protection: Hiccup mode. Protection will trigger when load current exceeds specified output current and will auto recover after
the fault mode is removed.
Short circuit protection: Hiccup mode. Protection will trigger when short circuit and will auto recover after the fault mode is removed.
Emergency Operation 90 minutes
Battery High-temperature, maintenance-free, LiFePO4
 battery, 9.6Vdc, 3 cell
Recharge Time 24 hours
Battery Charging Current 307mA
