Keystone KT-EMRG-LED-10BC-1000-SEN2

KT-EMRG-LED-10BC-1000-SEN2 Product Description

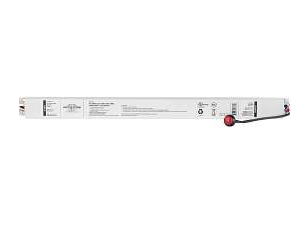

Keystone KT-EMRG-LED-10BC-1000-SEN2 LED Emergency Back-Up Driver | Constant Power | 10W | Slim Case | 15-55V Output | Approx 1000 Lumens | 90 Min Operation | 120-277Vac Input | CEC T20 Compliant | Double-Ended Wiring Leads | Battery Integrated

Electrical Specifications:

Input Voltage Range 100 - 277Vac
Frequency 50/60Hz
Power Factor >0.5 @ 120 - 277 Vac
Inrush Current < 5A
Max input Current 80mA @ 120Vac
Output Voltage Range 15 - 55 Vdc Class 2 compliant
Output Current Range 180 - 680 mA
Output Power 10W
Protection
• Over Voltage Protection: Hiccup mode. Protection will trigger when load voltage exceeds specified output voltage and will auto recover after
the fault mode is removed.
• Over Current Protection: Hiccup mode. Protection will trigger when load current exceeds specified output current and will auto recover after
the fault mode is removed.
• Short Circuit Protection: Hiccup mode. Protection will trigger when short circuit and will auto recover after the fault mode is removed.
• Over Temperature Protection: Protection will trigger when driver overheats and auto-recovery when cooled down.
Emergency Operation 90 minutes
Battery High-temperature, maintenance-free, LiFePO4
 battery, 6.4Vdc, 4.5Ah
Recharge Time 24 hours
Battery Charging Current 400mA
Test Switch Length 25 inches with Quick Connector
Auto Battery Connect
• Battery Connect: The battery will ship in Sleep Mode. The battery will engage automatically when mains power (120-277Vac) is applied.
There are no physical battery connectors.
• Battery Disconnect/Sleep: To return the battery to Sleep Mode, when disconnected from mains power, press and hold the test switch
for 5 seconds. Battery will disengage until mains power is applied. Sleep Mode should be used for transportation and storage
