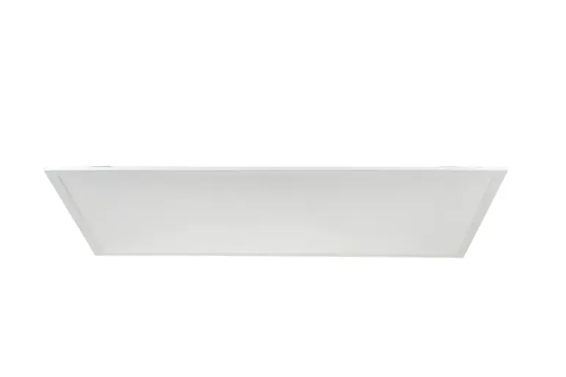

Keystone KT-BPLED45PS-24C-8CSA-VDIM

KT-BPLED45PS-24C-8CSA-VDIM Product Description

This Keystone advanced LED panel delivers high-performance illumination for commercial and office environments. Featuring dual Power Select and Color Select technology, it provides exceptional flexibility for diverse lighting requirements. The extruded aluminum construction with precision laser welded corners ensures professional-grade performance in contractor-focused applications.

Features:

2x4 LED panel design for recessed or surface mount installations in commercial environments
Field-adjustable wattage: choose between 30W/35W/45W to customize light output for specific applications
Field-adjustable CCT: adjust between 3000K/4000K/5000K to create the ideal environment for different tasks
Maximum output of up to 5,650 lumens with 80+ CRI and efficacy up to 140 lm/W
Suitable for recessed or surface mount with standard T-grid compatibility and IC rating for direct insulation contact
Extruded aluminum frame with precision laser welded corners and satin white powder coating
120-277V operation
Damp location rated with operating temperature range of -4°F to 104°F
Over 50% energy savings compared to traditional fluorescent troffers
Compatible with Keystone SmartSafe LED emergency backup systems

Specifications:

Brand:    Keystone
Flat Panel Type:    Back-Lit
Manufacturer Part Number:    KT-BPLED45PS-24C-8CSA-VDI      UPC:    843654156996
Lumens:    5,300 Lumens
Wattage:    45 Watts
Input Voltage:    120-277V
Dimmable:    0-10V
Color Temperature:    3500K, 4000K, 5000K
Rated Hours:    50,000 Hours
Min Operating Temp:    -4 Degrees F
CRI:    80+
Special Features:    CCT Selectable, Wattage Selectable
Length:    47.76"
Width:    23.74"
Height:    1.47"
