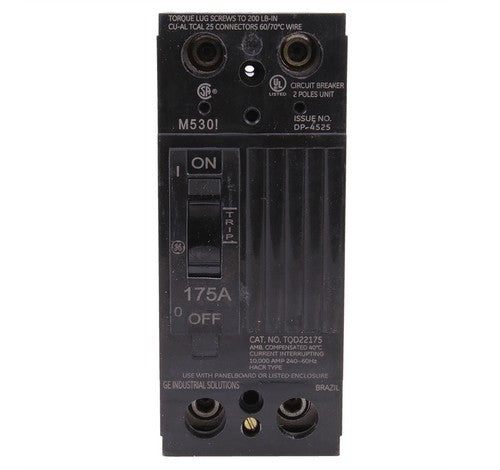

GE TQD22175WL 175 Amp TQD 2P Thermal Magnetic Circuit Breakers 10KA 120 ~ 240 VAC
2
sold in last
8
hours
TQD22175WL
$250.00
customers are viewing this product
PRODUCT DESCRIPTION
The TQD Line of devices include thermal magnetic molded case circuit breakers and molded case switches. The devices are complete with Cu/Al line and load lugs. 2-POLE 240V 10K IC 175AMP W/LUGS
FEATURE :
Category: Thermal Magnetic
Product Line: Thermal Magnetic
GO Schedule: EF
SPECIFICATIONS :
Trip Style: Non-Interchangeable
Frame Type: Q-Line
Amperage: 175 A
Poles: 2
System Voltage: 120 Vac, 120/240 Vac, 240 Vac
120 Vac Interrupting Rating: 10 KAIC
120/240 Vac Interrupting Rating: 10 KAIC
240 Vac Interrupting Rating: 10 KAIC
Trip Function: LI
Continuous Current Rated: Standard
Suitable for Reverse Feed: Yes
Lugs: TCAL25
Long Time: Fixed
Instantaneous: Fixed
Current Metering: No
Protective Relays: No
Special Markings: HACR
GSA Compliance: No
Classifications:
UL File # E11592
UPC: 783164021196
FEATURE :
Category: Thermal Magnetic
Product Line: Thermal Magnetic
GO Schedule: EF
SPECIFICATIONS :
Trip Style: Non-Interchangeable
Frame Type: Q-Line
Amperage: 175 A
Poles: 2
System Voltage: 120 Vac, 120/240 Vac, 240 Vac
120 Vac Interrupting Rating: 10 KAIC
120/240 Vac Interrupting Rating: 10 KAIC
240 Vac Interrupting Rating: 10 KAIC
Trip Function: LI
Continuous Current Rated: Standard
Suitable for Reverse Feed: Yes
Lugs: TCAL25
Long Time: Fixed
Instantaneous: Fixed
Current Metering: No
Protective Relays: No
Special Markings: HACR
GSA Compliance: No
Classifications:
UL File # E11592
UPC: 783164021196
