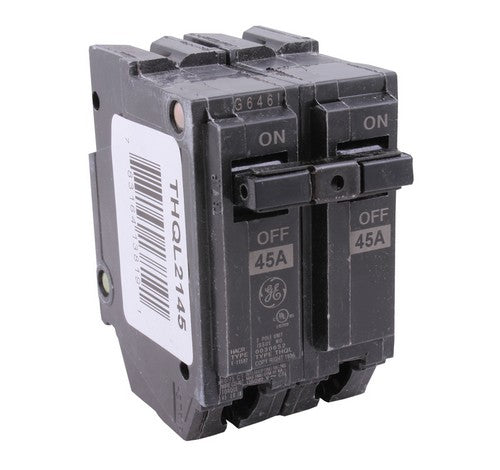

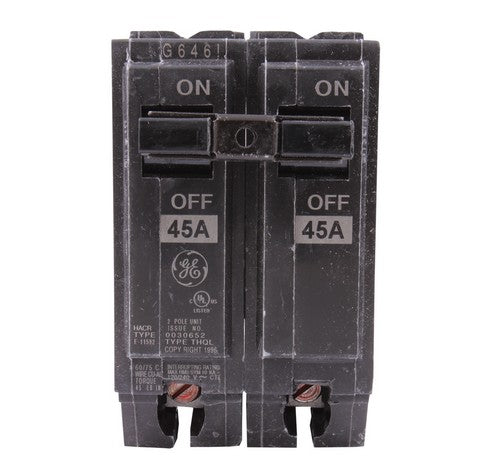

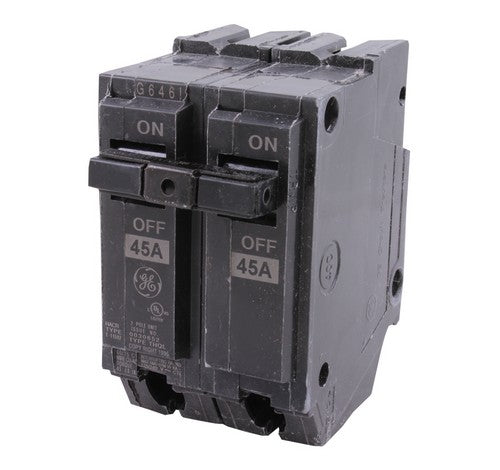

GE THQL2145 45 Amp Two-pole Feeder Plug-in Circuit Breakers 10K IC 120/240V

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 2145 Amps 45 A 21458191

FEATURE :

Category: Feeder Plug-in Circuit Breakers
Product Line: Q-Line (Plug-In)
GO Schedule: R5

SPECIFICATIONS :

Trip Style: Non-Interchangeable
Frame Type: Q-Line
Amperage: 45 A
System Voltage: 120 Vac, 120/240 Vac
Poles: 2
Trip Function: LI
Continuous Current Rated: Standard
120 Vac Interrupting Rating: 10 KAIC
120/240 Vac Interrupting Rating: 10 KAIC
Suitable for Reverse Feed: Yes
Long Time: Fixed
Instantaneous: Fixed
Protective Relays: No
Current Metering: No
Special Markings: HACR
GSA Compliance: Yes
Classifications: UL File #: E11592
UPC: 783164138191
