ESL Vision ESL-ISS-SSEN-01

ESL-ISS-SSEN-01 Product Description

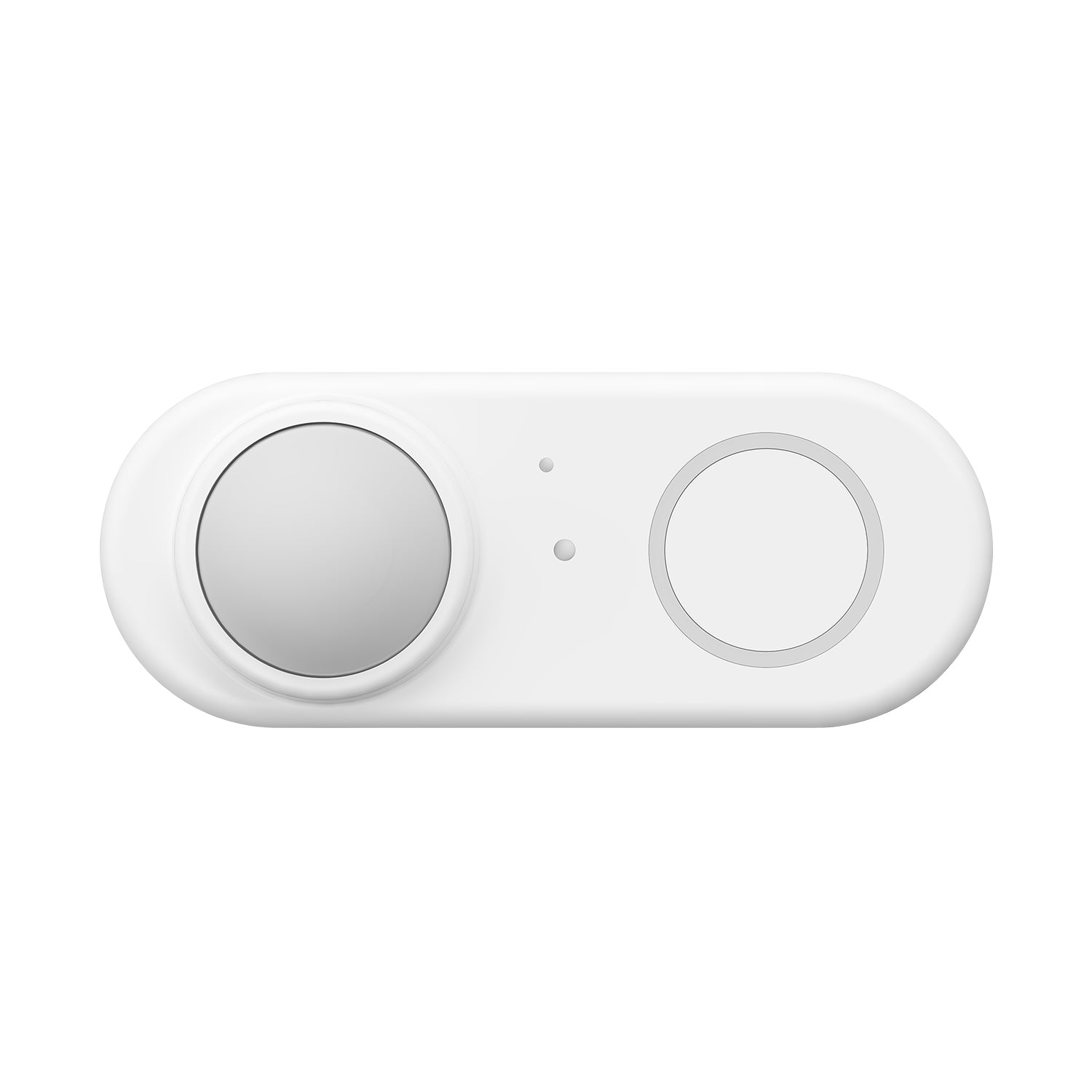

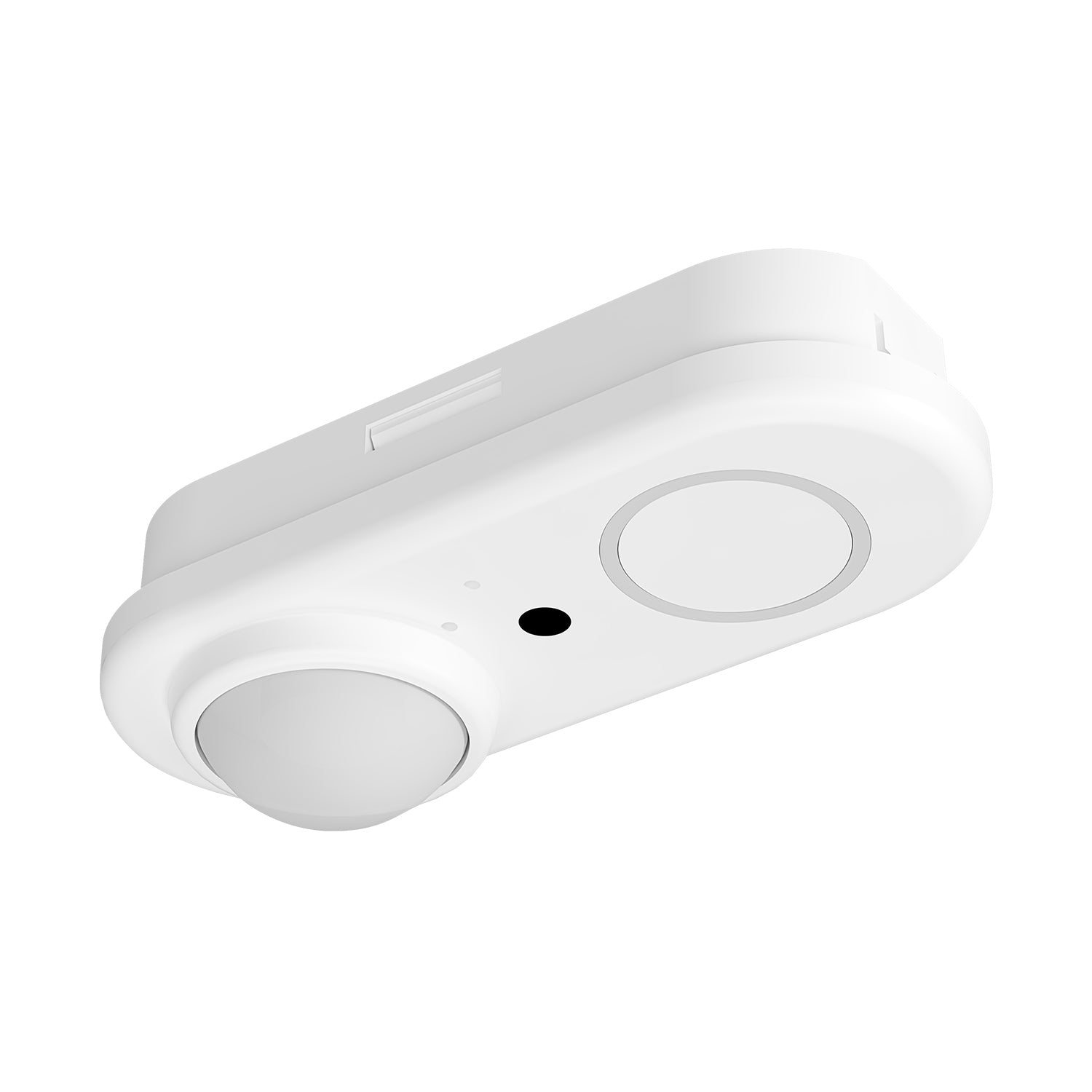

The ESL Vision ESL-ISS-SSEN-01 is a standalone PIR occupancy and daylight harvesting sensor designed for quick installation into our IntelliSense™ quick connect lighting fixtures. With this sensor installed, the fixture becomes remote programmable, allowing for single fixture control.

Features:

PIR Occupancy Sensing
Daylight Harvesting
High & Low Trim Capable
Single Fixture Control
Simple Remote Programming
Simple Lighting Control

Specifications:

Manufacturer: ESL Vision
SKU: ESL-ISS-SSEN-01
UPC: 196065198902
INPUT
Input Voltage: 12 VDC
Input Current: 9mA Max
Input Power: 0.1W
Dimming: Class 2, 0–10 VDC, 10mA Max
Sinking Current: 10mA Max
OUTPUT
Output Voltage: 10 VDC
Output Current: 10mA Max
Output Power: 0.1W
ENVIRONMENT
Housing Material: UL 94-5VA Plastic
Location of Use: Indoor
Detection Range: 32 Feet Max
Mounting Height: 15 Feet Max
Operating Temperature: -22°F to 149°F (-30°C to 65°C)
Storage Temperature: -22°F to 185°F (-30°C to 85°C)
IP Rating: IP20
CERTIFICATIONS
Compliance: UL8750
Warranty: 5 Years
