ESL Vision ESL-CSS-821-24-3040W-3550K-EM15

ESL-CSS-821-24-3040W-3550K-EM15 Product Description

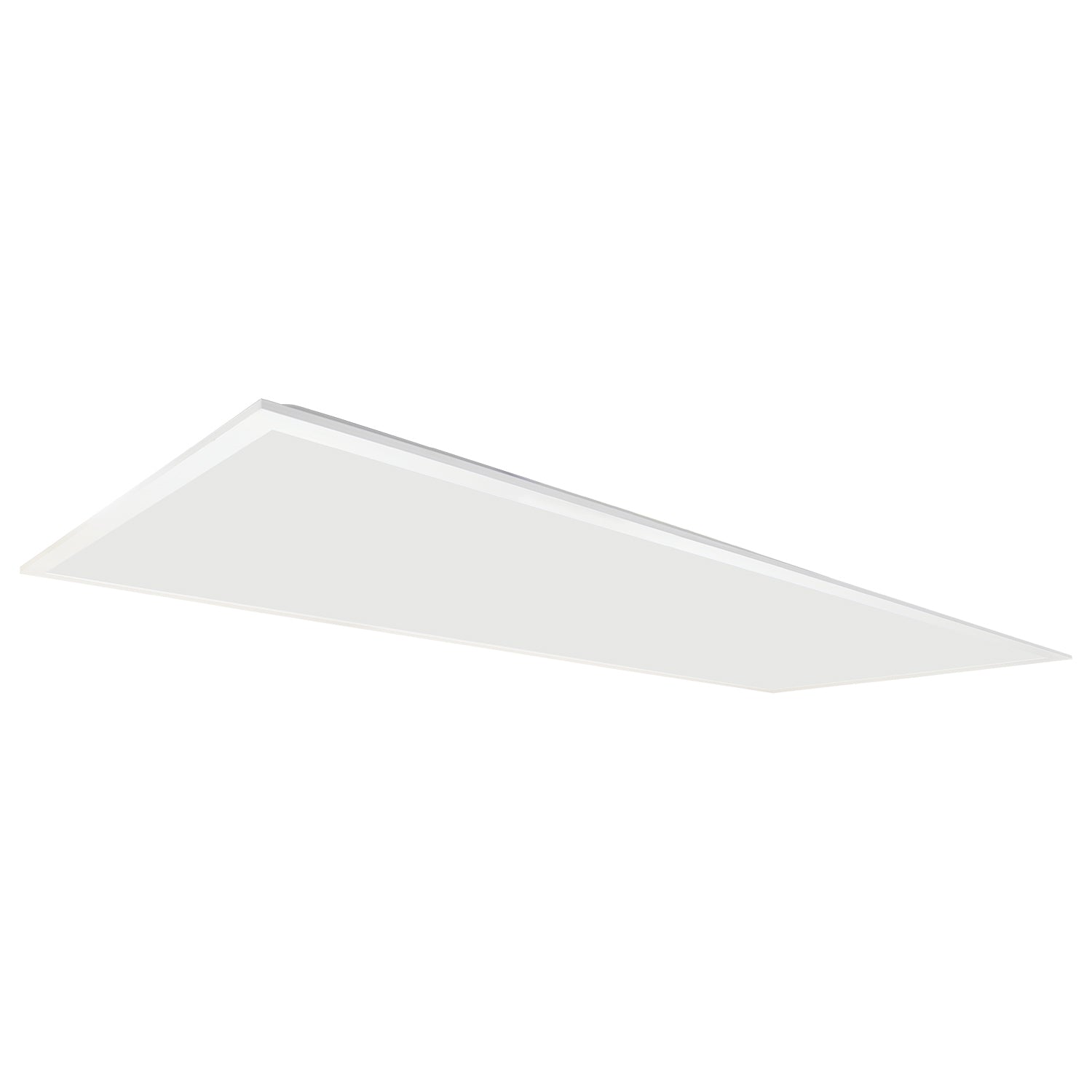

The 2×4 821 Panel Series offers selectable wattage 30W—35W—40W and color temperatures, delivering up to 5,040 lumens with 0–10V dimming. Built for efficiency and durability, it’s ideal for damp locations, featuring a slim design, CRI >80, and a 5-year warranty.Additionally, the emergency backup battery unit ensures reliable operation with a 90-minute minimum runtime, powered by a Li-ion battery. It includes an auto test function and is designed with a closed frame and flex conduits for easy installation.

Specifications:

Brand: ESL Vision
SKU: ESL-CSS-821-24-3040W-3550K-EM15
UPC: 196065200636
Selectable Wattage: 30W—35W—40W
Selectable Kelvin: 3500K—4000K—5000K
Lumens: Up to 5,040
Efficacy: Up to 126 lm/W
Input Voltage Options: 120–277 VAC
Input Frequency: 50/60 Hz
Operating Temperature: -4ºF to 122ºF (-20ºC to 50ºC)
Dimming: 0–10V Dimmable
CRI: >80
Beam Angle: 110º
Warranty: 5 Years
L70 Lifetime 100,000 hrs Calculated per TM21
Dimensions: 23.7" x 47.8" x 1.5"
Damp Location
0–10V Dimming
Emergency backup battery unit
Output: 15W
Runtime: 90 minutes minimum
Input Voltage: 100–347VAC
Output Voltage: 170VDC
Battery Type: Li-ion
Auto Test Function
Design: Closed frame with flex conduits
UL Listed for factory or field installation
Weight (lbs): 4.43
