EnvisionLED S-TWC-MW-1

S-TWC-MW-1 Product Description

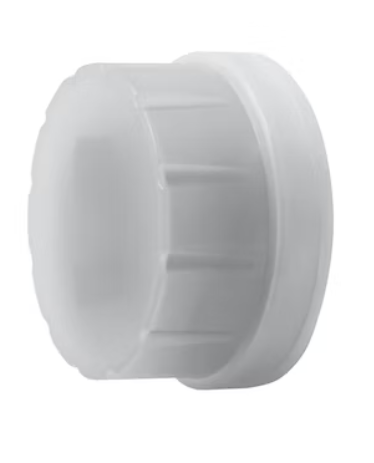

The S-TWC-MW-1 is a motion sensor that dims lighting from high to low based on movement.This slim, low profile sensor is designed for installation inside the bottom of a light fixture body.The sensors use microwave sensing technology that reacts to changes in movement within the coverage area.Once the sensor stops detecting movement and the time delay elapses lights will go from high to low mode and
eventually to an OFF position if it is desired. Sensors must directly “see” motion of a person or moving object to detect them, careful consideration must be given to sensor luminaire placement and lens selection. Avoid placing the sensor where obstructions may blovk the sensor’s line of sight

Specifications:

Power Supply: 12V-24V DC, >50mA
Dim Control Output: 0-10V, Max. 25mA Sinking Current
HF System: 5.8 GHz CW
Transmission Power: <0.2mW
Detection Radius: 20% / 50% / 75% / 100% (1-8m)
Mounting Height: Max 40ft. (12 meters)
Time Setting: 10s / 1 min / 5 min / 10 min / 15 min / 20 min / 30 min / 60 min
Light Control: 24H / 10LUX / 30LUX / 50LUX
Temperature: -40˚F ~ +158˚F (-40˚C ~ +70˚C)
IP Rating : IP65
