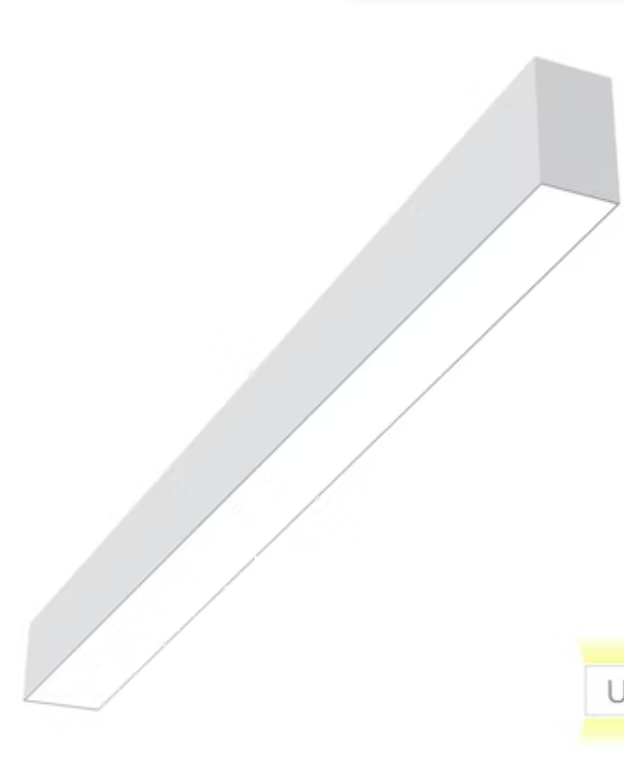

EnvisionLED LED-ALIN2-4FT-3P50-UD-5CCT-WH LED 4' Architectural Linear Fixtures 50W White Finish

EnvisionLED LED-ALIN2-4FT-3P50-UD-5CCT-WH

LED-ALIN2-4FT-3P50-UD-5CCT-WH Product Description

The ARCY-Line Direct/Indirect Architectural luminaires offer a 2" sleek
and modern appearance with symmetrical light distribution. They can
be surface, wall, recess, trimless, or pendant mounted. The luminaire
provides flexible and creative illumination design options, including
direct, indirect, and wall wash lighting, with fully illuminated corners
for seamless connections between luminaires. It is designed to make
an enduring impression in corporate offices, educational institutions,
commercial spaces, and retail environments.

Detail Specifications:

• Finish: White, Custom finishes available
• IP Rating: Damp Location (IP44)
• Up & Down Beam Angle: 110°
• Chip: SMD 2835, R9 >50, CRI >90
• Operating Temperature: -4° - 122° F
• Lens: Acrylic Frosted Lens Standard: efficiently emits the light through
a high-quality acrylic lens, spreading it evenly and without causing glare
- Optional Louver available
• Average life (L70) of 50,000 hours

Applications:

• Stairwell & Hallways
• Utility & Storage
• Garage Structures
• Office and Meeting Rooms
• Retail
• Commercial and Industrial

Product Information:

• Construction:
- One piece aluminum extrusion housing that incorporates a precisely
cut, smooth white extruded frosted lens that securely attaches to the
body and allows easy removal for accessing the driver and LED boards
when needed.
- Solid aluminum end caps are included
- Finished with corrosion free powder coat
• Fixture can be surface mounted or pendant mounted with
• 4O J-box cover included with every fixture
• Select-n-Switch Technology: 5-CCT + 3-Power Selectable

Seamless Connection:

• Fixture is pre-wired with or easy daisy chain
• No additional wiring is required for continuous run
• Connector brackets to link fixtures in a continuous run is included

Driver Options:

• Max Run: 600W off one power feed
- Maximum run by foot chart on page 3
• UNV: 100-277V 0-10V Dimmable (Dim-to-off)
• Optional 347-480V step down transformer available
• THD: <20% (+/-5% tolerance), PF >0.9, 50/60Hz
• 3-Power Selectable
• Flicker Free

Mounting & Installation:

• 5-wire 6’ power cord is included. 6-wire power cord is included
with emergency models
• 6’ Canopy suspension kit (1 power feed) included
• Surface mount: compatible with 3O or 4O j-box. Screws and connector
included with each fixture.
• Wall, Recessed, Trimless, Flange Mount, Suspended all available.
Details below.
