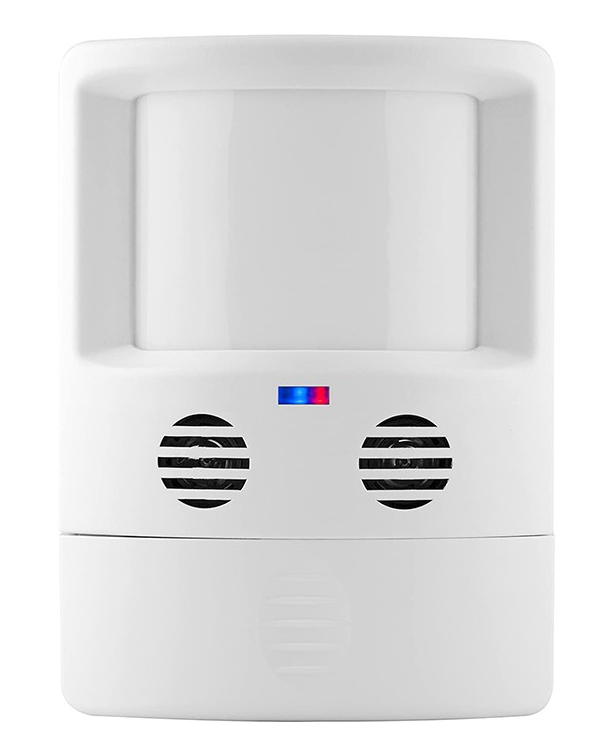

Enerlites MDW-L-W

MDW-L-W Product Description

Enerlites wall-mounted dual technology occupancy sensor detects at a 150-degree field of view. Advanced ultrasonic & passive infrared technology provides the most accurate detection possible. Can even detect fine movements such as typing, or flipping pages of a book.

Specifications:

Part Number: MDW-L-W
Color: White
Incandescent: 800W-120VAC, 50/60Hz
Fluorescent: 800VA-120VAC, 1600VA-277VAC, 50/60HZ
Motor: 1/4 HP - 120VAC, 50/60HZ
Operating Temperature: 32°to 131°F (0°to 55°C)
Adjustment Time Delay: 5 Sec. to 30 Min.
Test Mode: Delay time is 5 sec. lasts 30 Min. at each time by setting
PIR Adjustment: 50% or 100% (DIP switch 1)
Ultrasonic Adjustment； Minimum to Maximum (trim pot 1)
Light Level Adjustment: 100 Lux --daylight (trim pot 2)
PIR Coverage: 1600 sq. ft.
Ultrasonic Coverage: 1000 sq. ft.
Multi-technology PIR and Ultrasonic
Multi-level, 360° Fresnel lens for superior occupancy detection
Controls incandescent, CFL, and LED lighting
Product Warranty: 2 Years
