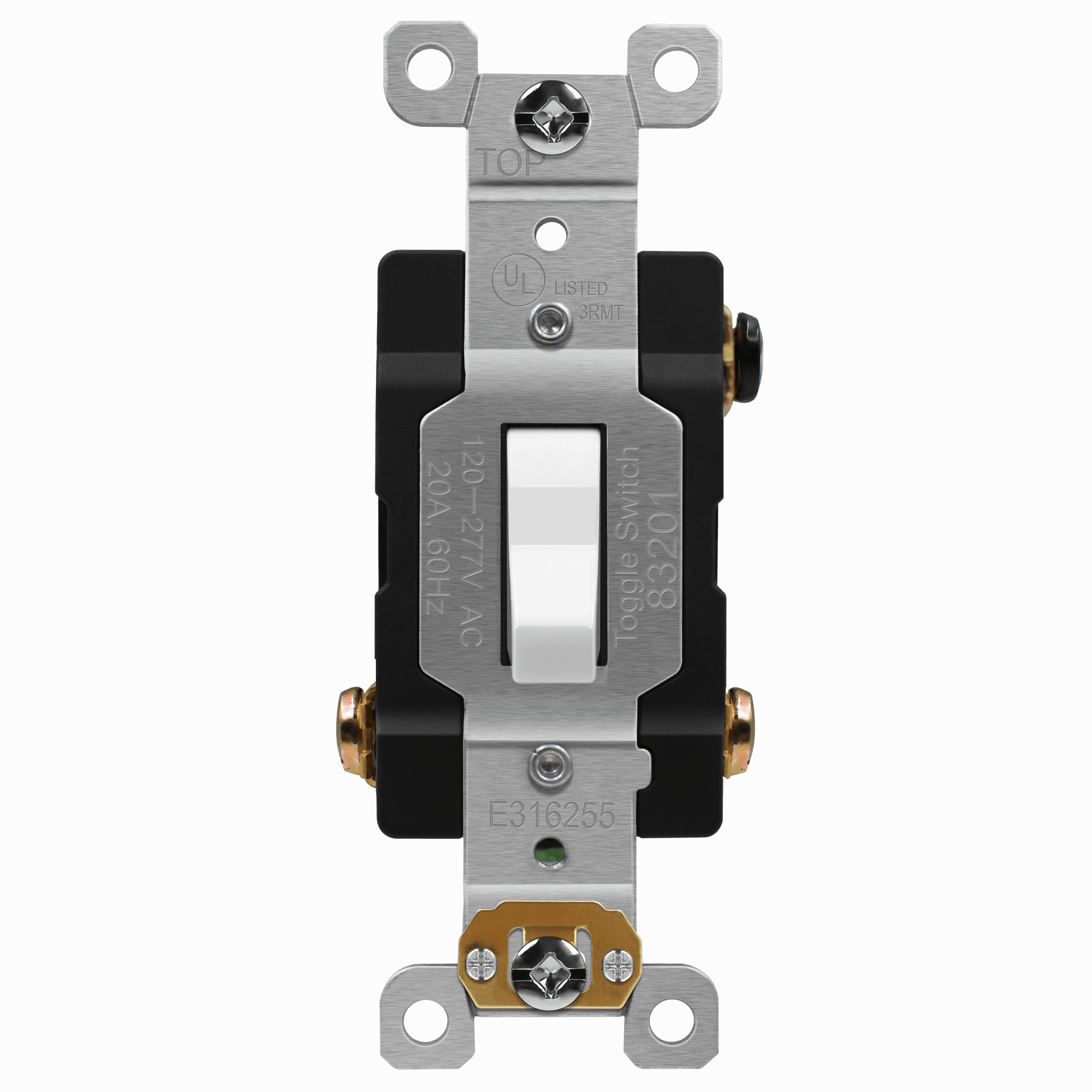

Enerlites 83201A-W

83201A-W Product Description

The ENERLITES 83201 3-way toggle switch is a 20A replacement for any commercial grade wall switch. This toggle light switch is easy to install and it is compatible in either single pole or 3-way installations. This expands the range of potential applications, allowing the toggle switch to be installed in 3-way configurations in which a single load is controlled from two separate locations. The wall switch is made from high-quality Polycarbonate Thermoplastic material for high resistance to heat and impacts, and the metal components are made from solid steel. These materials are virtually indestructible, making the switch ideal for longevity in physically demanding applications. This 20A electrical switch is ideal for commercial locations such as schools, stores, restaurants, hotels, and more. It can also be used in residential locations that may require the use of 20A switches for high-power appliances

Features:

-Made with silver ion additive for antimicrobial properties; the surface resists the growth of unwanted microorganisms such as mild, mildew, and bacteria

-Motor Rating: 1HP

-Industrial grade ON/OFF toggle switch with shallow body design to fit standard junction boxes

-Replaces any 1-gang wall switch; push-in and side wiring (copper only)

-Made from impact-resistant Polycarbonate Thermoplastic with solid steel components

-Frame dimensions: 3.65” H x 1.30” W x 0.90” D

-Suitable for commercial locations such as offices, schools, stores, shops, restaurants, public facilities, and hotels, as well as residential areas that require 20A switches

-White; 20A, 120V/277 VAC

-3-way or single pole; option of back wiring (#10-#14 AWG) or side wiring (#12-#14 AWG)

-Self-grounding; break-off plaster yoke tabs

-UL-listed

Model Number: 83201A-W
