EMCOD ML20S12AC Class 2 20W Magnetic LED AC Driver Outdoor Phase Cut Dimmable, Black Powder Coated Steel Enclosure
2
sold in last
8
hours
ML20S12AC
$56.00
$50.40
customers are viewing this product
PRODUCT DESCRIPTION
EMCOD ML20S12AC
ML20S12AC Product Description

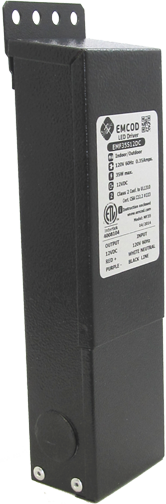

EMCOD Class 2 20W Magnetic LED AC Driver Outdoor Phase Cut Dimmable, Black Powder Coated Steel Enclosure
Specifications:
Transformer
Dimmable with compatible MLV, ELV, CL dimmers, please refer to list on
emcod.com
Temperature class B(130°C)
Input leads are 18AWG 600V
Output leads are 18AWG 300V
Leads max. operational temperature is 105°C
Thermal self reset primary breaker 0.8A
Thermal self reset secondary breaker 3A
Housing
The actual transformer 20W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 2 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 65°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 7, W = 2.11, D = 1.54
Weight (LBs): 1.9
About EMCOD:
EMCOD is a world-class developer and manufacturer of LED drivers, Lighting and custom made general-purpose transformers for electronic and electrical equipment. Emcod Lighting group’s advanced LED drivers and transformers bring innovation to commercial and residential lighting.Have Questions?Ask a BuyRite Electric Expert
