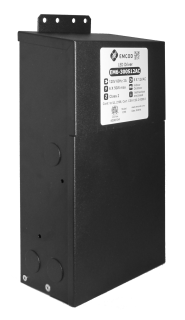

EMCOD EM6-300S12DC

EM6-300S12DC Product Description

EMCOD 300W LED Magnetic Driver Phase Dimmable 120V/12VDC, Black Powder Coated Steel Enclosure

Specifications:

Transformer
Dimmable with any LV magnetic dimmer as long as you cover dimmer’s
min load.
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads: Terminal Block
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 5A
Thermal manually reset secondary breaker 5A per circuit

Housing
The actual transformer 300W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 13 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 10.29, W = 5.69, D = 3.43
Weight (LBs): 10
