EMCOD EM250S12DC

EM250S12DC Product Description

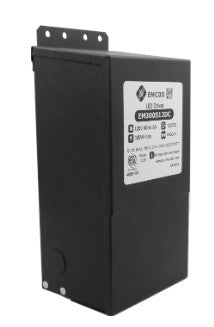

EMCOD LED Magnetic Driver Phase Cut Dimmable 120V/12VDC, Wattage 250W, Black Powder Coated Steel Enclosure

Specifications:

Transformer:
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads are 12AWG 300V
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 4A
Thermal manually reset secondary breaker 25A

Housing:
The actual transformer 250W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 6 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 8, W = 4.15, D = 3.41
Weight (LBs): 0.83

About EMCOD:

EMCOD is a world-class developer and manufacturer of LED drivers, Lighting and custom made general-purpose transformers for electronic and electrical equipment. Emcod Lighting group’s advanced LED drivers and transformers bring innovation to commercial and residential lighting.
