EMCOD EM2-200S24DC

EM2-200S24DC Product Description

EMCOD Class 2 LED Magnetic Outdoor Driver Phase Cut Dimmable 120V/24VDC, Wattage 200W, Black Powder Coated Steel Enclosure

Specifications:

Transformer:
Dimmable with any MLV, CL dimmer, as long as, dimmer's min. load is
covered.
Temperature class B(130°C)
Two section bobbin completely separated primary and secondary windings
Input leads are 18AWG 600V
Output leads: Terminal Block
Leads max. operational temperature is 105°C
Thermal manually reset primary breaker 3A
Thermal manually reset secondary breaker 4A per circuit

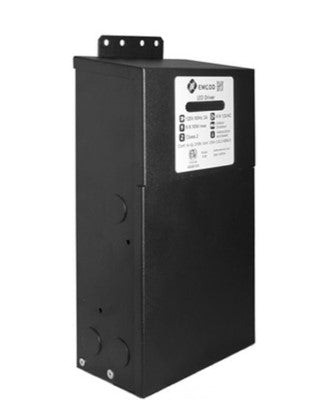

Housing:
The actual transformer 200W is encapsulated in the enclosure
The enclosure is Black Powder Coated Steel, NEMA 3R rated
Wiring compartment has 13 knockouts sizes for 3/8 inch screw cable
connectors
Enclosure Temperature does not exceed 75°C at 45°C ambient and fully
loaded
Dimensions (inch): H = 10.29, W = 5.69, D = 3.43
Weight (LBs): 10
