ELCO Lighting ERT81DXCT5W

ERT81DXCT5W Product Description

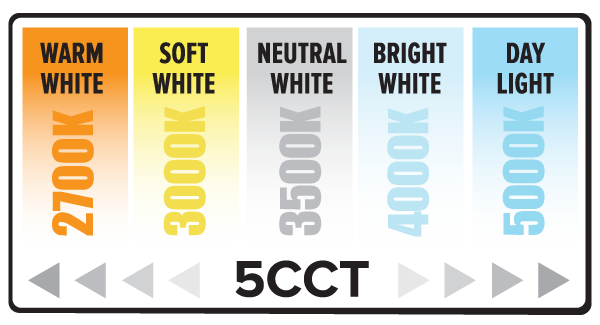

These unique 8" ultra slim panel light designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. This IC-rated fixture can be installed indoor or outdoors

FEATURES :

IC Airtight for use with direct contact to insulation.
Designed to fit in plenums as shallow as 2".
Eliminates the need for housing.
Not for use with E8LF1
Remodel applications require no additional accessories.
Wet Location allows for use indoors or outdoors.
CA Title 24 and ENERGY STAR Compliant.
Includes driver and Jbox.

SPECIFICATIONS :

Wattage 20W
Lumens 1200 lm
Voltage 120/277/347V
Color Temp. 2700K, 3000K, 3500K,
4000K, 5000K
Dimmable Triac/ELV/0-10V
Lamp Type LED
CRI 90+
Wet Location Listed


Technical Details

Optics: Polycarbonate lens diffuses light evenly throughout space with no LED pixelation.

Construction: IC rated driver and fixture are tested and approved for direct contact with insulation. Aluminum die-cast trim ring with durable powdercoat finish preventing rust and paint cracking. Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside aluminum remote box with two 7/8" knockouts with slots for pryout.

Installation: Designed for super shallow ceiling plenums without any housing. High strength steel spring clip for easy installation. Hole cut out template provided for accurate hole size for proper trim installation. Maximum hole size should not exceed 6 1/4" for this product. Suitable installation for t-grid and drop ceiling applications.

Electrical: Driver connects directly to 120/277/347V power supply. Standard input wattage is 15W, 63 lumens per watt. Replaces 100W incandescent.

Dimmability: Works with 120/277/347V dimmers. Dims down to 10%. For full list of dimmers, refer to the ELM System Dimmer Compatability List.

Listings: ETL Listed for Wet Locations. IC-Rated for direct contact with insulation. Air Tight certified in accordance with ASTM E283-2004. Califonia Title 24 compliant (JA8-2016-E)

Warranty: 5-year limited warranty.

About ELCO Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, undercabinet lighting, wall packs, step lights and more.
