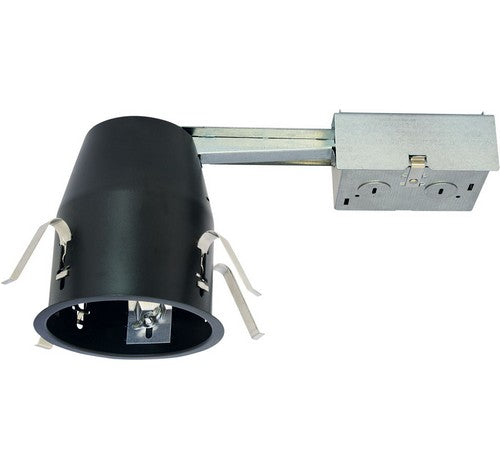

ELCO Lighting EL99RA Medium Base 4" Down Lighting Remodel Airtight Miniature Housing
2
sold in last
8
hours
EL99RA
$12.53
customers are viewing this product
PRODUCT DESCRIPTION
4" Line Voltage Remodel Housing, Airtight. Housing Features: Remodel housing with integral thermal protector guards against improper lamping. Single wall construction. Adjustable socket bracket allows the use of different lamp types and sizes as well as proper and consistent positioning.
The EL99RA housings meets restricted air flow Requirements (Per ASTM E-283 Standards). IECC Compliant.
SPECIFICATIONS :
Lamp: 120V, 50/75W Maximum. See trims page for lamp type and rating.
Lamp Holder: Adjustable medium base socket.
Trim Ring: Polycarbonate trim ring, metal trim ring, designed to conceal ceiling cut-out.
Junction Box: Pre-wired junction box provided with 1/2" and 3/4" knockout. Maximum (8) No. 12 AWG branch circuit conductors (4 in, 4 out). Junction box provided with removable access plates. Listed for feed through.
Mounting: (4) remodel clips secure housing and accomodate various ceiling thickness.
Labels:
U.L. listed for damp locations.
U.L. listed for feed through.
The EL99RA housings meets restricted air flow Requirements (Per ASTM E-283 Standards). IECC Compliant.
SPECIFICATIONS :
Lamp: 120V, 50/75W Maximum. See trims page for lamp type and rating.
Lamp Holder: Adjustable medium base socket.
Trim Ring: Polycarbonate trim ring, metal trim ring, designed to conceal ceiling cut-out.
Junction Box: Pre-wired junction box provided with 1/2" and 3/4" knockout. Maximum (8) No. 12 AWG branch circuit conductors (4 in, 4 out). Junction box provided with removable access plates. Listed for feed through.
Mounting: (4) remodel clips secure housing and accomodate various ceiling thickness.
Labels:
U.L. listed for damp locations.
U.L. listed for feed through.
