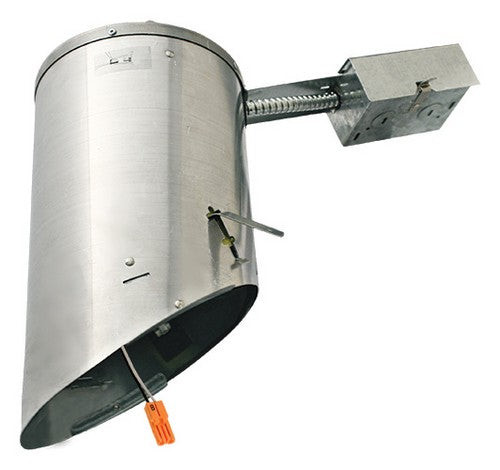

ELCO Lighting EL971RICA

EL971RICA Product Description

ELCO Slant allows for installation in sloped ceilings ranging from 7/12 (30°) to 12/12 (45°). Can be used in insulated ceilings. Fits in 2" x 8" joist construction.

FEATURES :

6" Super Sloped Remodel Single Wall Housing.
IC Airtight for use in insulated ceilings.
Designed for use in 7/12 to 12/12 sloped ceiling.
California Title 24 (JA8-2016-E).

SPECIFICATIONS :

Wattage : 24W
Voltage : 120V
Damp Location : UL listed

Construction:
IC Rated for Direct Contact with Insulation.
Designed for use in 7/12 to 12/12 sloped ceiling.
Housing adjusts in frame to accommodate up to 1 1/4” ceiling thickness.
Aluminum housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x8 joists or taller are used. Template for hole cutout is provided with each housing. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts and One 3/4” knockout. Four true pry-out knockout slots for easy Romex installation.

Electrical:
Connection is rated for 120V or 277V input. LED module must be compatible with applicable voltage.
For 277V step down to 120V housing consult factory.

Trims: Compatible with EL761, EL762, EL763, EL764 Series LED Inserts.

Warranty: ELCO Products are built to last. 5-year Limited warranty.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
AirTight: Per ASTM E-283.
California Title 24 (JA8-2016-E).
