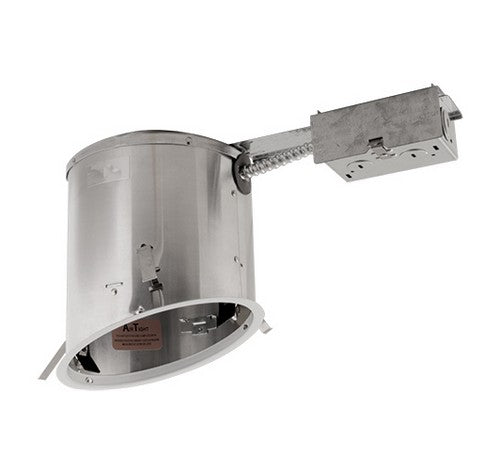

ELCO Lighting EL918RICA

EL918RICA Product Description

ELCO Slant allows for installation in sloped ceilings ranging from 2/12 (10°) to 6/12 (26.5°). Can be used in insulated ceilings. Fits in 2" x 8" joist construction.

FEATURES :

Airtight aluminum Single Wall Construction.
Integral thermal protector guards against improper lamping.
Designed for use in 2/12 to 6/12 sloped ceiling.
Socket: Medium base E26.
Compatible with Medium Base Incandescent, CFL or LED Lamp MAX. 75W. Works with LED Quick-Connect Inserts with PSA30 Socket Adapter.

SPECIFICATIONS :

Wattage : 75W
Voltage : 120V
Lamp Type : Medium Base (E26)
Damp Location : Listed

Construction:
IC Rated for Direct Contact with Insulation.
Designed for use in 2/12 to 6/12 sloped ceiling.
Aluminum housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x8 joists or taller are used. Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2” trade size conduit knockouts and One 3/4” knockout. Four true pry-out knockout slots for easy Romex installation.

Electrical:
Rated for 120V or 277V input.
For 277V step down to 120V housing consult factory.

Trims: Compatible with ELCO Line Voltage Slope Trims.

Labels and Listings:
UL Listed for Damp Location.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
Meets restricted air flow requirements (Per ASTM E-283 Standard).
