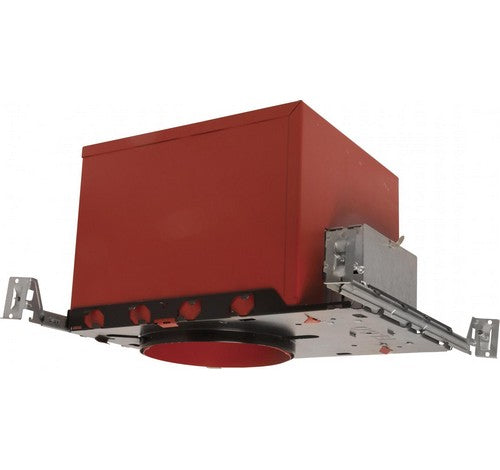

ELCO Lighting EL7FICA 90W 6" IC Airtight New Construction 2-Hour Fire Rated Housing
2
sold in last
8
hours
EL7FICA
$69.93
customers are viewing this product
PRODUCT DESCRIPTION
ELCO Lighting EL7FICA
EL7FICA Product Description
UL Listed for 2-Hour Fire Resistance to meet and exceed strict fire safety codes.Integrated Non-combustible insulation acts as a sound barrier minimizing sound transfer between floors.
E26 Edison base socket for incandescent or LED lamps.
For use with ELCO line voltage 5" Trims.
SPECIFICATIONS :
Wattage : 90WVoltage : 120V
Lamp Type : Medium Base (E26)
Damp Location : Listed
Construction:
Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Installation:
Designed for ceiling plenums where 2x8 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.
Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.
Labels and Listings:
UL Listed for Damp Location and for Wet Location with select trims.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
About Elco Lighting
Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.Have Questions?Ask a BuyRite Electric Expert
