ELCO Lighting EL76FICA-7

EL76FICA-7  Product Description

6" Fire Rated ICA New Construction LED housing. Compatible with 4" LED inserts. 2-hour fire rated. Quick Connect terminal connector for easy installation.

FEATURES :

UL Listed for 2-Hour Fire Resistance to meet and exceed strict fire safety codes.
Integrated Non-combustible insulation acts as a sound barrier minimizing sound transfer between floors.
Meets Title 24 requirements.
Trims and inserts sold separately.
14W MAX.

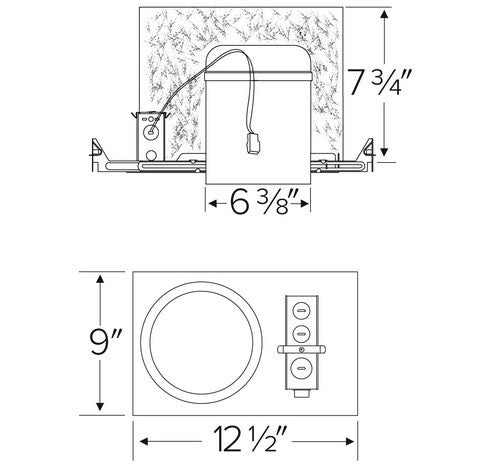

Heigh: 6 3/4″

SPECIFICATIONS :

Free shipping on this product

Wattage : 22W
Voltage : 120V or 277V
Damp Location : Listed

Construction:
Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation:
Designed for ceiling plenums where 2x8 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4” knockouts, Seven 1/2” trade size conduit knockouts, One 3/8" knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical: High Efficiency driver with a power factor > 0.9.

Lamp: Designed for use with ELCO 6" LED inserts, LED modules, or PSA37 with 6" MR16 trims.

Labels And Listings :
UL Listed for Wet Location.
UL Listed for Direct Contact with Insulation and Combustible Material.
UL Listed for Feed Through.
RoHS Compliant.
ENERGY STAR® Certified.
