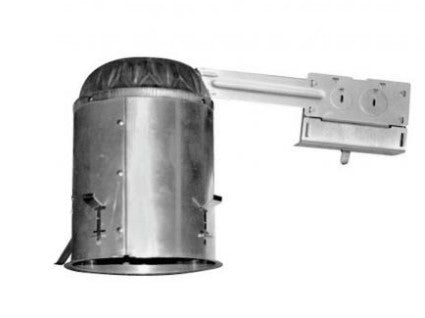

ELCO Lighting EL5RICA 5 Inches Aluminum Airtight IC Remodel Housing Watt 75W, Voltage 120V

2 sold in last 8 hours

EL5RICA

$13.93
$13.93
customers are viewing this product

ELCO Lighting EL5RICA

EL5RICA Product Description

ELCO Lighting EL55ICA 5 Inches Aluminum Airtight IC Shallow Housing Watt 75W, Voltage 120V

Features:

5” Airtight IC Remodel Housing.
For direct contact with ceiling insulation.
Integral thermal protector guards against improper
lamping.
Four remodel clips secure housing and accommodate
various ceiling thickness.
Adjustable socket bracket allows for different lamp
types/sizes and proper and consistent lamp positioning.
Pre-wired junction box provided with 1/2" and 3/4"
knockouts and with removable access plates.
Lamp: PAR
UL Listed damp location and for feed through.

Specifications:

Wattage 75W
Voltage 120V
Lamp Type Medium Base (E26)
Damp LocationListed

Technical Details:


Construction:
• IC rated for direct contact with insulation, for use in IC or non-IC conditions.
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
• Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
• Aluminum housing for greater heat dissipation.

Installation: Designed for ceiling plenums where 2x8 joists or taller are used. Maximum hole cutout is 5 1/2". See installation sheet for detailed information.

Electrical:
• Input Voltage: 120V AC.
• Thermally protected against improper lamping.

Trims: Compatible with ELCO 5" Line Voltage PAR trims.

Lamp: Designed for use with Medium Base (E26) PAR lamps up to 75W.

Listings:
• UL Listed for Damp Location.
• UL Listed for Feed Through.
• UL Listed for Direct Contact with Insulation and Combustible Material.
• Airtight per ASTM E-283.
• Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

About Elco Lighting:

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
