Elco Lighting EL490AJICDXA
EL490AJICDXA Product Description

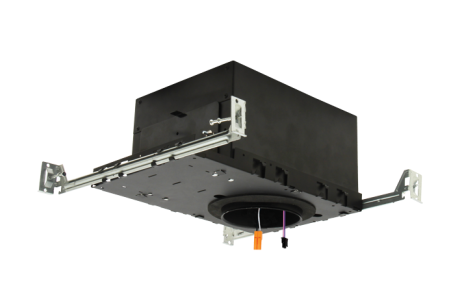

4" New Construction LED Housing compatible with 0-10V LED Koto™ Module.Features:
Wired for 0-10V Dimming120/277V Input
Double Wall LED New Construction IC Airtight R-60 Foam Insulation Housing
Meets Title 24 requirements
ENERGY STAR® Certified.
Suitable for Chicago Plenum construction
Specifications:
Wattage 15 MAXW
Voltage 120/277V
Dimmable 0-10V/Triac/ELV
Damp Location Listed
Technical Details:
Construction:
• Double Wall IC rated for direct contact with insulation, for use in IC or Non-IC conditions.
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
• Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
• Steel housing for greater heat dissipation. Stamped galvanized steel frame.

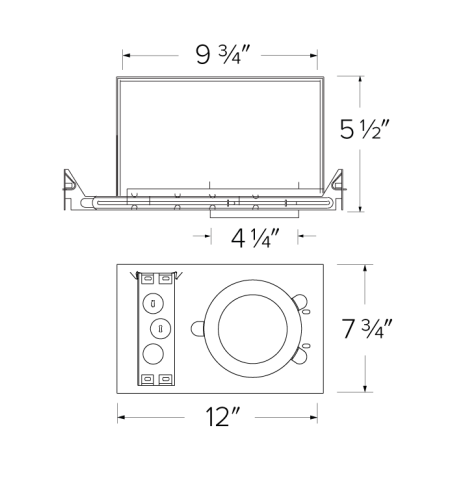

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. High strength hanger bars can easilty be nailed to joists. Maximum hole cutout is 4 1/4". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.
Junction Box: Positioned to accommodate straight conduit runs. Two 3/4" knockouts slots.
Hanger Bars: Pre-installed hanger bars with True Nail facilitate easy installation in regular lumber, engineered lumber, and laminated beams. Integral T-bar slots for easy installation in T-bars. Spans up to 24" and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while aligning the housings with the joists.
Electrical: Input Voltage: 120/277V.
Lamp: Designed for use with 0-10V Koto™ LED module
Listings: UL Listed for Damp Location. UL Listed for Direct Contact with Insulation and Combustible Material. Airtight per ASTM E-283. Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
Warranty: ELCO Lighting warrants this product will be free from defects in materials and workmanship for a period of 5 years
About Elco Lighting:
Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
