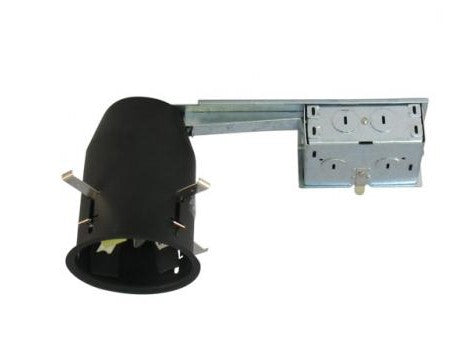

ELCO Lighting EL39RA

EL39RA Product Description

3" airtight miniature housing for remodel applications. For use with 50W GU10 MR16 lamp.

Features:

Single wall construction.
For use in non-insulated ceilings, where insulation
must be kept 3" from all sides of fixture.
Integral thermal protector guards against improper
lamping.
Lamp: 50W MAX 120V GU10 MR16.
Lamp Holder: Twist-and-lock GU10 MR16 lampholder.
Trims sold separately.

Specifications:

Wattage 50W
Voltage 120V
Lamp Type GU10
Damp LocationListed

Technical Details

Construction:
• Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
• Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
• Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 3 5/8". Suitatble for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Electrical:
• Input Voltage: 120V AC.
• Thermally protected against improper lamping.

Trims: Compatible with ELCO 3" MR16 trims.

Lamp: Designed for use with GU10 MR16 LED lamps.

Dimmability:
• Dimmability based on lamp.

Listings:
• UL Listed for Damp Location.
• UL Listed for Wet Location with select trims.
• UL Listed for Feed Through.
• Airtight per ASTM E-283.
