ELCO Lighting EL39LDRICA 12W 3 Inch Remodel Housing

2 sold in last 8 hours

EL39LDRICA

$15.36
$15.36
customers are viewing this product

Elco Lighting EL39LDRICA

EL39LDRICA Product Description

3" remodel housing for use with 120V GU10 MR16 LED lamps.

FEATURES :

Single wall IC construction, for use in insulated ceilings.
Flicker Free LED Dimming.
Lamp: 120V, MR16 GU-10 LED (not included).
Lamp Holder: Twist-and-lock GU10 MR16 lamp holder.
Trims sold separately.

SPECIFICATIONS :

Wattage : 12W
Voltage : 120V
Lamp Type : GU10 LED
Wet Location : Listed with Shower Trims
Damp Location : Listed

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.

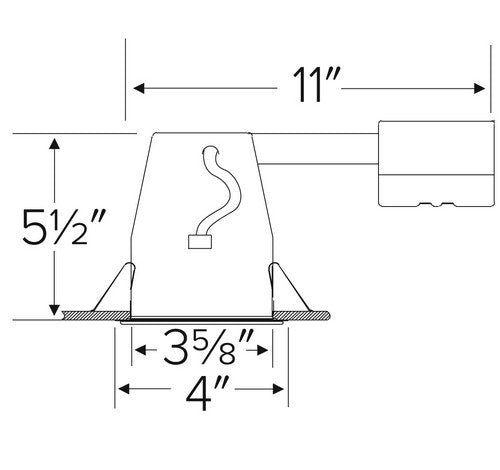

Housing adjusts in frame to accommodate up to 1 1/4" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 3 5/8". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Junction Box: Positioned to accommodate straight conduit runs. Seven 1/2" trade size conduit knockouts, four 3/4" knockouts with pry-out knockout slots. 4 Romex pryouts with strain relief.

Electrical:
Input Voltage: 120V AC.
Thermally protected against improper lamping.

Trims: Compatible with ELCO 3" MR16 trims.

Lamp: Designed for use with GU10 MR16 LED lamps.

Dimmability:
Dimmability based on lamp.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.

About Elco Lighting

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
