Elco Lighting EL390RICA

EL390RICA Product Description

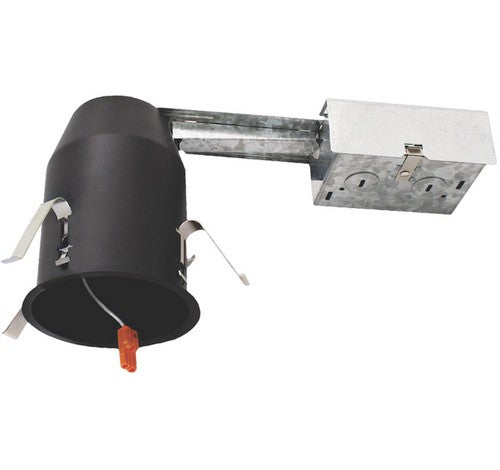

3" remodel dedicated LED housing. Compatible with MR16 LED lamps with PSA37 or 3" LED inserts.

FEATURES :

Single wall IC construction, for use in insulated ceilings.
Flicker Free LED Dimming.
Trims and inserts sold separately.

SPECIFICATIONS :

Wattage 14W
Voltage 120V
Wet Location Listed with Shower Trims
Damp LocationListed

Construction:
Single wall IC rated for direct contact with insulation, for use in IC or non-IC conditions.
Housing adjusts in frame to accommodate up to 1 1/2" ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.
Steel housing for greater heat dissipation. Stamped galvanized steel frame.

Installation: Designed for ceiling plenums where 2x6 joists or taller joists are used. Maximum hole cutout is 3 5/8". Suitable for T-grid and drop ceiling applications. See installation sheet for detailed information.

Electrical:
Input Voltage: 120V AC.
Thermally protected against improper lamping.

Lamp: Designed for use with GU10 MR16 LED lamps.

Dimmability:
Dimmability based on lamp.

Warranty: ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 3 years.

Listings:
UL Listed for Damp Location.
UL Listed for Wet Location with select trims.
UL Listed for Feed Through.
UL Listed for Direct Contact with Insulation and Combustible Material.
Airtight per ASTM E-283.
Install a JA8-2016-E lamp/luminaire for Title 24 Compliance.
